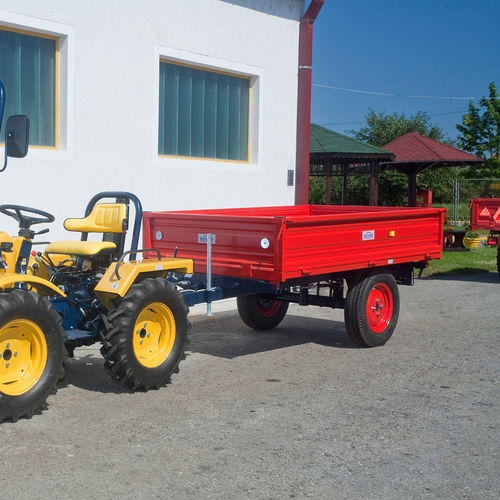

Tipping trailer PH 1,5
single-axleagricultural0 t...10 t

Tipping trailer - PH 1,5 - HITTNER d.o.o. - single-axle / agricultural / 0 t...10 t
Tipping trailer - PH 1,5 - HITTNER d.o.o. - single-axle / agricultural / 0 t...10 t
Tipping trailer - PH 1,5 - HITTNER d.o.o. - single-axle / agricultural / 0 t...10 t - image - 2
Tipping trailer - PH 1,5 - HITTNER d.o.o. - single-axle / agricultural / 0 t...10 t - image - 3
Tipping trailer - PH 1,5 - HITTNER d.o.o. - single-axle / agricultural / 0 t...10 t - image - 4
Tipping trailer - PH 1,5 - HITTNER d.o.o. - single-axle / agricultural / 0 t...10 t - image - 5
Tipping trailer - PH 1,5 - HITTNER d.o.o. - single-axle / agricultural / 0 t...10 t - image - 6
Tipping trailer - PH 1,5 - HITTNER d.o.o. - single-axle / agricultural / 0 t...10 t - image - 7
Add to favorites
Compare this product


Characteristics

Construction
tipping
Number of axles
single-axle
Application
agricultural
Payload
0 t...10 t
Brake system
with hydraulic braking
Other characteristic
3-way
Load volume

1.4 m³
(49.441 ft³)

Loading case lenght

2,410 mm
(94.9 in)

Loading case width

1,420 mm
(55.9 in)

Loading case hight

400 mm
(15.7 in)

Description

TEHNICAL INFORMATION Model:axle tractor trailer with hydraulic unloading device Max length:3420mm Max width:1560mm Max height:1200mm Distance of the towing eye from the wheel axle:2290mm Distance of the towing eye from the horizontal base:460mm Porosity:320mm Surface of the loading box bottom:3,42m2 Volume of the loading box:1,36m3 Work cylinder: One-way action, telescopic with 2 degrees of extraction Allowed pressure:160bar (16Mpa) Number of tires:2 Size of tires:7,50—16—M1 10Ply Tire pressure:370kPa (3,7bar)
