Hopper seed drill Express TD series
disctractor-mounted3-point hitch

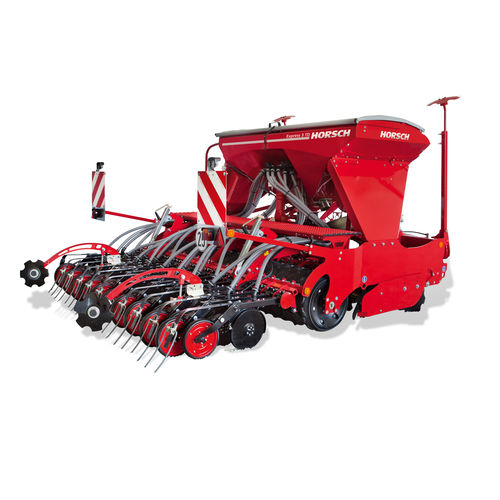

Hopper seed drill - Express TD series - HORSCH Maschinen GmbH - disc / tractor-mounted / 3-point hitch
Hopper seed drill - Express TD series - HORSCH Maschinen GmbH - disc / tractor-mounted / 3-point hitch
Hopper seed drill - Express TD series - HORSCH Maschinen GmbH - disc / tractor-mounted / 3-point hitch - image - 2
Hopper seed drill - Express TD series - HORSCH Maschinen GmbH - disc / tractor-mounted / 3-point hitch - image - 3
Hopper seed drill - Express TD series - HORSCH Maschinen GmbH - disc / tractor-mounted / 3-point hitch - image - 4
Hopper seed drill - Express TD series - HORSCH Maschinen GmbH - disc / tractor-mounted / 3-point hitch - image - 5
Hopper seed drill - Express TD series - HORSCH Maschinen GmbH - disc / tractor-mounted / 3-point hitch - image - 6
Hopper seed drill - Express TD series - HORSCH Maschinen GmbH - disc / tractor-mounted / 3-point hitch - image - 7
Hopper seed drill - Express TD series - HORSCH Maschinen GmbH - disc / tractor-mounted / 3-point hitch - image - 8
Hopper seed drill - Express TD series - HORSCH Maschinen GmbH - disc / tractor-mounted / 3-point hitch - image - 9
Hopper seed drill - Express TD series - HORSCH Maschinen GmbH - disc / tractor-mounted / 3-point hitch - image - 10
Hopper seed drill - Express TD series - HORSCH Maschinen GmbH - disc / tractor-mounted / 3-point hitch - image - 11
Hopper seed drill - Express TD series - HORSCH Maschinen GmbH - disc / tractor-mounted / 3-point hitch - image - 12
Hopper seed drill - Express TD series - HORSCH Maschinen GmbH - disc / tractor-mounted / 3-point hitch - image - 13
Hopper seed drill - Express TD series - HORSCH Maschinen GmbH - disc / tractor-mounted / 3-point hitch - image - 14
Hopper seed drill - Express TD series - HORSCH Maschinen GmbH - disc / tractor-mounted / 3-point hitch - image - 15
Hopper seed drill - Express TD series - HORSCH Maschinen GmbH - disc / tractor-mounted / 3-point hitch - image - 16
Hopper seed drill - Express TD series - HORSCH Maschinen GmbH - disc / tractor-mounted / 3-point hitch - image - 17
Hopper seed drill - Express TD series - HORSCH Maschinen GmbH - disc / tractor-mounted / 3-point hitch - image - 18
Hopper seed drill - Express TD series - HORSCH Maschinen GmbH - disc / tractor-mounted / 3-point hitch - image - 19
Hopper seed drill - Express TD series - HORSCH Maschinen GmbH - disc / tractor-mounted / 3-point hitch - image - 20
Add to favorites
Compare this product


Characteristics

Seed distribution
hopper
Type
disc
Other characteristics
tractor-mounted, 3-point hitch
Working width

3 m, 3.5 m
(9'10" , 11'05" )

Inter-row spacing

14.5 cm, 15 cm
(5.7 in, 5.9 in)

Power required

Min.: 125 ch
(125 hp)

Max.: 220 ch
(220 hp)

Working speed

Min.: 10 km/h
(6.2 mph)

Max.: 20 km/h
(12.4 mph)

Weight

Min.: 2,600 kg
(5,732 lb)

Max.: 3,400 kg
(7,495.7 lb)

Seed hopper volume

1,500 l
(396.3 gal)

Description

What are the excelling features of the Express TD? The Express TD combines the advantages of a manoeuvrable 3-point mounted seed drill with the efficiency of a Pronto DC. The compact high speed drill with low horse power requirement guarantees a noticeable increase in productivity. Preparation The well-proven DiscSystem of the Express TD guarantees a perfect production of fine soil at an operational speed of 10 to 20 km/h. Due to the intensive tillage it can do without a pto-shaft. Due to the high clearance the 460 mm discs are very efficient even if there are high amounts of organic material. The working depth of the DiscSystem can be adjusted hydraulically and comfortably from the tractor. Seedbed preparation A very even emergence is the prerequisite for an even plant growth. To achieve this aim, the seedbed has to be levelled and consolidated in an optimum way. The packer elements of the FarmFlex packer with a diameter of 54 cm are especially coordinated with the seed coulters.
