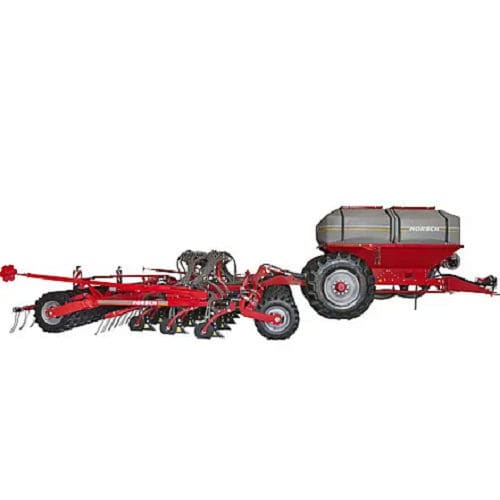

Mechanical seed drill Sprinter SW series

tinetowedwith fertilizer applicator

The Sprinter is a robust, compact and multifunctional tine seed drill available in working widths from 3 to 12 m. Due to the Duett coulter it is possible to sow, fertilise and at the same time cultivate the soil effectively as well as produce fine soil in the area where the seed is placed. The Sprinter tines effectively remove harvest residues from the seed horizon. Due to its large-capacity seed hopper the Sprinter is a high hectare output machine. The seed coulters of the Sprinter are arranged in 3 bars (Sprinter 12 SW in 2 bars) with a tine spacing of 25 cm to 32 cm. They prepare the seedbed in an optimal way. As with a cultivator tine the soil is loosened, levelled, mixed and crushed. Your benefits include ■Universal use: after plough, minimum cultivation and direct sowing ■Tines remove harvest residues effectively from the seed horizon ■High coulter pressure (285 kg) for exact depth control ■Low horsepower requirement ■Seeding coulter and tools for mixing, crushing and levelling ■Specific consolidaton in the germination zone ■High efficiency of the Sprinter with large hopper for fertiliser and seed Large seed hopper The seed waggon 8000 SW of the Sprinter SW has a capacity of 8 000 litres (partition 50 % seed / 50 % solid or liquid fertiliser). Good manoeuvrability A 2-point pivoting headstock links the compact Sprinter with the tractor. Tractors with wide tyres can make close turns, up to 90°. Any mechanical drives were eliminated.
