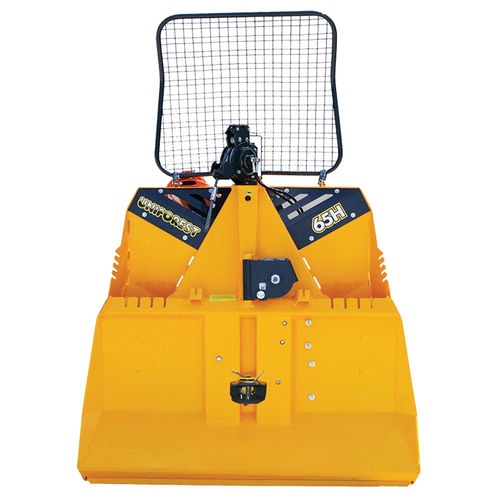

Hydraulic forestry winch 65H

tractor mounted

The 65 H log skidder winch is suitable for connection to medium and large tractors, hydraulic system and electromagnetically controlled seat valves, hydraulic components, integrated in the column, are protected from damage and weather, multi-blade clutch, lower pulley and serial connection, built-in sealed bearings, lubrication is not required, the possibility of attachment at 2 different heights, It comes with 3 Cable Sliders and a Swivel End Fitter to attach multiple logs. 1. Electromagnetic globe valves (no leaks or pressure losses). 2. Hydraulic components (tank, cylinders…) are galvanic anticorrosion protected. 3. Pump driven through gear drive. 4. All hydraulic components are fitted into the winches framework and therefore protected from damage and weather events. 5. Three-plates clutch from thick sheet metal, therefore there is no tear in the boreholes. 6. Safety pin to keep the wire rope from falling out at the lower pulley. 7. The lower pulley attached using a magnet. 8. Devise for unwinding wire rope is available. 9. Drive elements that are exposed to stress and wear are thermally treated (mended and induction hardened). 10. Sealed bearings no lube required.
