On-board display screen SPD-070-Ax-K series

with touchscreenCAN-Busdigital

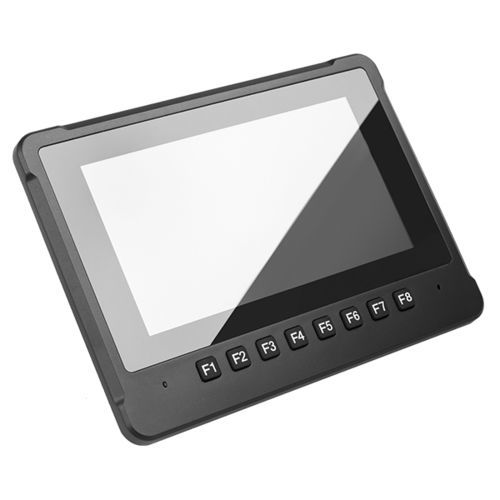

The 7-inch mobile machinery display SPD-070-Ax-K series from SonnePower is a capacitive touch screen with a screen resolution of 800*480, contrast ratio of 500, and brightness of 600cd/m2. 7-inch mobile machinery display supports CoDeSys 3.5 programming. It features 2 CAN bus interfaces, 1 RS232 (or optional RS485) serial port, 1 USB 2.0 OTG, 1 Ethernet port (dedicated for program debugging and downloading), 2 CVBS video inputs, and 6 IO resources. This product has high protection level and rich port resources. It can operate in harsh environments with wide temperature range, high humidity, strong vibration, and impact. It is widely used in various fields such as construction machinery, sanitation equipment, mobile devices, and heavy-duty equipment. View our wide industries solution! Power Supply: 8...32V DC Resolution: 800*480 Contrast Ratio: 500 Brightness: ≥600cd/m2 2 CAN bus interfaces, supports CoDeSys 3.5 programming 1 standard RS232 communication port, configurable baud rate 1 USB 2.0 OTG (for downloading, debugging, and software updates) 1 Ethernet port (for downloading and debugging) All input ports support power supply misconnection protection All output ports have short-circuit and overheating protection Protection Level: IP65 Supports embedded installation and universal joint fixed installation
