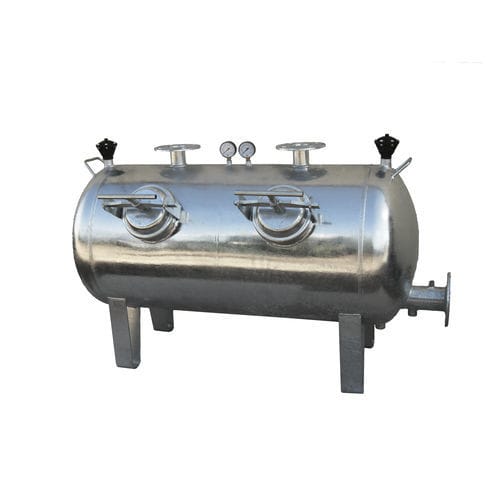

Irrigation sand filter 76 series

automaticautomaticmanual

The double chamber filter is particularly suitable for filtering water with a high quantity of organic substances: algae, slime and silty particles of organic matrix. It is recommended to use it for water coming from rivers, lakes or artificial basins. The special diffusing nozzles housed inside prevent the quartzite from compacting, also reducing the pressure drops of the entire system. The filter has a double chamber, i.e. divided in two by a plate, its special structure has been designed to reduce overall dimensions and to make it more easily transportable from one system to another should the need arise. The filter is supplied with a manual backwash system, on request it can also be automated with electrically operated hydrovalves. MATERIALS: Available in the hot-dip galvanized version or on request in the epoxy painted version. SUPPLIED ELEMENTS The filter is equipped with a dry pressure gauge and pp air vent FILTER ELEMENT: Quartzite (grain size 01.00MM -02.00MM) MAX PRESSURE: 6 BAR 8 BAR 10 BAR BACKWASHING THE FILTER: Manual filter backwashing; Automatic backwash.
