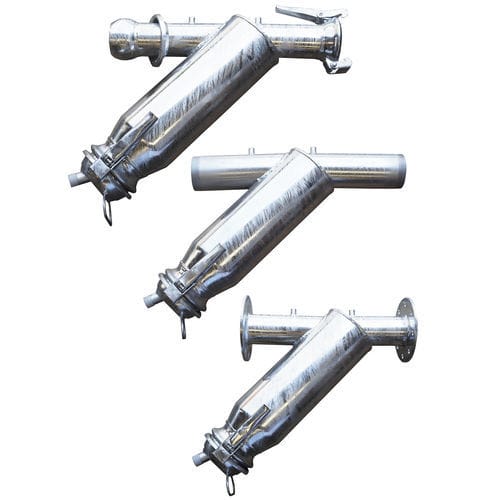

Mesh irrigation filter 05 series

cartridgestainless steelsteel

The mesh filter is the most widespread in filtration systems for drip irrigation and micro-sprinkling. It is an internal-external filter, built entirely in hot-dip galvanized or painted steel. The filter mesh is made of polyester and the support cartridge is made of AISI 304 stainless steel. The filter element is easily removable from the body to allow thorough cleaning. This filter is intended for relatively clean water and in fact they are used as secondary filters in surface water or as primary filters with springs or aqueducts. MATERIALS: Available in the hot-dip galvanized version or on request in the epoxy painted version. SUPPLIED ELEMENTS The filter is equipped with a dry pressure gauge and purge valve. FILTER ELEMENT: 120 MESH STAINLESS STEEL FILTER CARTRIDGE MAX PRESSURE: 6 BAR
