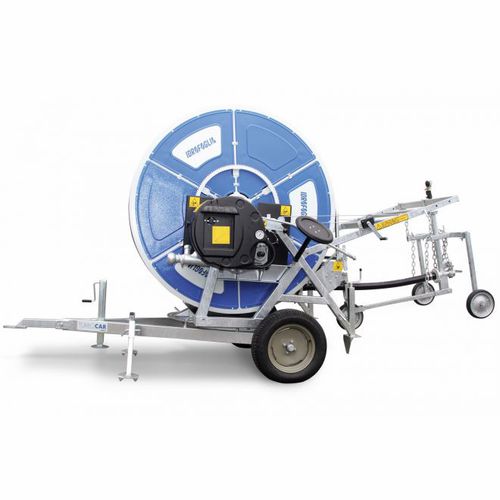

Irrigation hose reel G1.1 / G1,G2
turbine-drive

Irrigation hose reel - G1.1 / G1,G2 - IDROFOGLIA Srl - turbine-drive
Irrigation hose reel - G1.1 / G1,G2 - IDROFOGLIA Srl - turbine-drive
Irrigation hose reel - G1.1 / G1,G2 - IDROFOGLIA Srl - turbine-drive - image - 2
Irrigation hose reel - G1.1 / G1,G2 - IDROFOGLIA Srl - turbine-drive - image - 3
Add to favorites
Compare this product


Characteristics

Application
for irrigation
Drive type
turbine-drive
Hose diameter

Max.: 75 mm
(2.95 in)

Min.: 50 mm
(1.97 in)

Hose length

Max.: 320 m
(1049'10" )

Min.: 200 m
(656'02" )

Description

Hose drum with core in calendered sheet (it does not damage the PE hose but extends its duration), internal rays that allow the use of the machine also in extreme conditions. Adjustable and demountable tow-eye, mechanical folding staker leg to facilitate the movements and lateral stabilizer staker legs. Powder painted sheet guards for a longer duration. All drives are in the same side of the machine to facilitate the movements of the operator. Gearbox-turbine with the best performances of its category. Hose reel irrigator with turntable 360° equipped with: -Galvanized frame and painted reel -Mechanical parts painted with RAL 5017 -Flanged turbine on the gearbox, speed control and compensator -Gearbox single speed on 'G1.1', 3 speeds on models G1 and G2, with automatic drive disengagement, device for rewinding through PTO and rewinding out of the drum -Leadscrew hose layering device -3 wheels sprinkler trolley with adjustable track -Flanged turbine on the gearbox, speed control and compensator -Mechanical trolley lift and staker leg operations -Drawbar with connection adjustable in height (except on models G1.1 and G1), mechanical jack and lateral staker legs -Sectoring sprinkler with set of nozzles -Supply hose 4 mt. with female ball joint on line side -Water inlet from turbine side -Instructions and maintenance handbook -Guarantee coupon -Instructions and maintenance handbook
