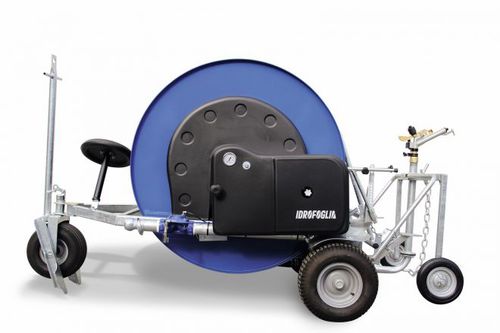

Irrigation hose reel J1,J2

turbine-drive

Hose drum with calendered plate, reinforced steel sides. Folding tow-bar with directional little wheel (only on J2). Professional hose winding system with turbine coupled to the gearbox directly. Sprinkler-trolley on wheels adjustable in width. Endless screw for a perfect hose winding regulation Fixed hose reel irrigator equipped with: -Galvanized chassis, sprinkler trolley and accessories -Towbar with foldable wheel (except J1 series) -Reel painted RAL5017 -Mechanical parts painted with RAL 5017 -Flanged turbine on the gearbox, speed control and compensator -Gearbox single speed with automatic drive disengagement, device for rewinding through handle or PTO (except on J1) and rewinding out of the drum (J1 excluded) -Leadscrew hose layering device -2 wheels sprinkler trolley with adjustable track and automatic trolley lift -Lateral staker legs -Sectoring sprinkler with set of nozzles -Supply hose 3 mt. with female ball joint on line side -Water inlet from turbine side -Instructions and maintenance handbook -Guarantee coupon
