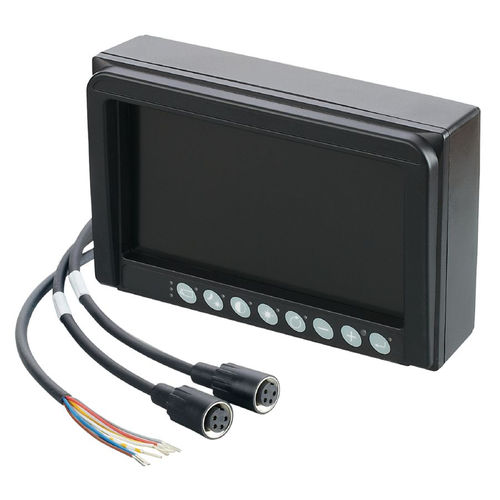

Application:Monitor for up to 2 O2M2xx / O3M2xx cameras
Electrical data
Operating voltage [V]:12...32 DC; (± 10%)
Overvoltage protection:yes
Power supply for camera [mA]:2000; (± 10%)
Inputs
Video input:1 Vtt, 75 Ω, PAL 50 Hz, 4,43 MHz color sub carr
Outputs
Analogue current output [mA]:...2000; (± 10%)
Operating conditions
Ambient temperature [°C]:-40...85
Storage temperature [°C]:-40...125
Storage humidity [:< 75; (relative humidity)
Shelf life [MON]:24
Protection:IP 67
