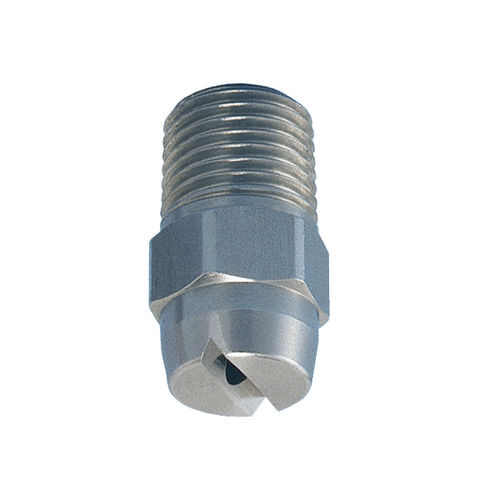

Ceramic nozzle VVP series

brassflat spray

1 piece structure standard flat spray Pipe conn. size: R 1/8" - R 1" Spray angle: 15 - 115° Mean droplet diameter: 150 - 1,100 μm Strainer: Available for some nozzle codes Standard pressure: 0.3 MPa (ca. 3 bar) Spray capacity: 0.20 - 150 L/min Air consumption: - Free passage diameter: 0.2 - 10.3 mm FEATURES The VVP series nozzles’ features: .Flat spray pattern with a mountain-shaped spray distribution having gradually tapered edges. .Tapered edges overlap to provide uniformity of spray distribution in multiple-nozzle arrangements. APPLICATIONS The VVP series nozzles have multiple applications: .Cleaning: Automotive, containers, films, felts, filters, screens, bottles, crushed stones, earth and sand, metal parts, machines, steel plates, and pieces .Spraying: Etchants, oils, lubricants, glues, solutions, insecticides, herbicides .Cooling: Gas, smokes, heat exchangers, tanks, steels, roofs .Water screen: Fire protection, heat protection, dust suppression, deodorization
