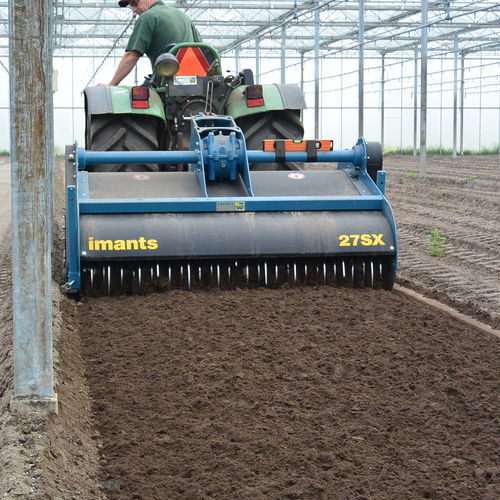

PTO-driven spader 27SX Series

Spading machines for sandy/loamy soils. The 27SX and 33SX series are compact and uncomplicated spading machines used in many industries. The machines can be fitted with a crumbler roller. So the primary tillage (spading) and secondary tillage (seedbed preparation) can be done in one pass. Machine design The new “flat” design and the distinctive yellow stripes combined with Imants blue and black give the machines a unique appearance. The spader works the soil by means of the spade shaft. On this shaft there are rows, each with a number of spade arms, the number of rows and spade arms depending on the machine and the working width. What is unique about these spade arms is the kink to the left and right. This means there are fewer banks and therefore more “room” in the machine. There is less chance ofclogging, the machine can be operated at higher speed, and the soil is tilled perfectly. The crumbler roller is fitted directly behind the spade shaft. The crumbler roller is a driven tube with hardened spring tines mounted on it. Its special design makes the crumbler roller suitable for: a perfectly consolidated seed bed a levelling effect the incorporation of organic matter Types 27 and 33 are driven by a PTO shaft (540 rpm) and are carried by the three-point hitch. The machine lowers by means of the hitch until the crumbler roller supports a large part of the machine. The working depth is then adjusted using the position adjuster on the tractor. On one side there is a spade shaft drive and of the other the crumbler roller drive.
