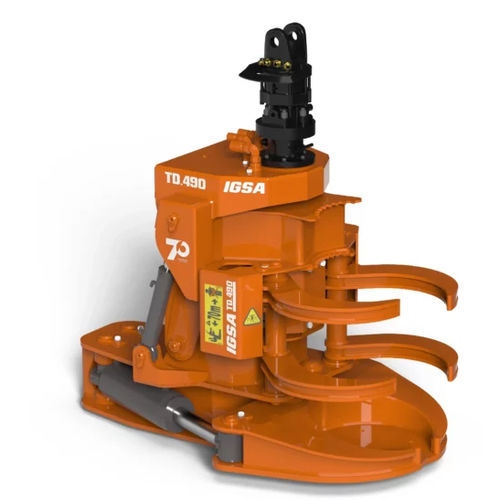

Forest thinning felling head IGSA TCD.490

biomass

Specially designed for medium-sized timber and thinning. Equipped with a continuous rotator and 90° oscillating tilt, which facilitates access to the felling operation. The IGSA TCD400 is the ideal tool for users who need to increase productivity while reducing costs: • Reduced fuel consumption. • Reduced time and cost of head and attachment maintenance. • Lower cost compared to disc harvesters. • It allows to obtain a great performance in wood harvesting applications for cellulose and biomass. • Adaptable to both hardwoods (eucalyptus, etc.) and conifers (pine, etc.). • Designed for installation on wheeled machines. • Independent claw opening. • Its design ensures continuous performance throughout its life. • High elastic limit steel chassis. • Treated cutting blades. • Suitable hydraulic control valve installed and protected. • Built-in and protected electronic equipment. Cutting data Cuttinq cycle (approx. fixed cutting) 12" Two-blade shear cutting Quadruple claw system Longitudinal tilt Hydraulic data Cylinder force 384 kN Recommended flow 200L/min Maximum workinq pressure 250 bar Recommended power 60 - 80 kW 2-hydraulic cylinder oscillatinq tilt 90° Dimensions Height 1680 mm Width 1100 mm Length 1760 mm Approximate Weight 1490 kg
