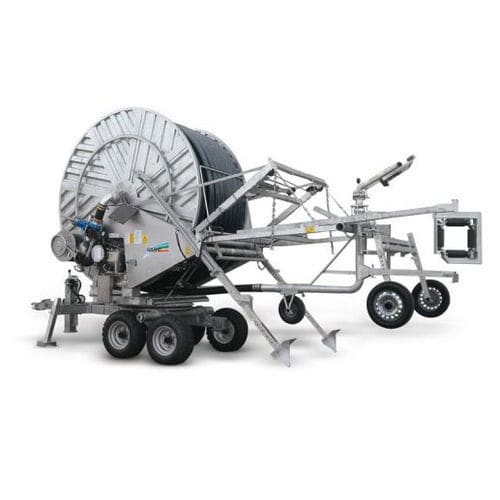

Irrigation hose reel DIAMANT

For pipes diameter 75/82/90/100/110/120/125/135/140/150/160 with lengths from 200 to 750 metres. The Diamant series is at the top of the Irriland range for its very advanced design and construction criteria. On this automatic hard hose reel every manoeuvre can be made without any effort. Simply using the hydraulic controls it is possible to work: • the front foot • fifth wheel rotation • trolley loading • right-hand stabiliser • left-hand stabiliser. Standard Equipment: – Hot galvanized frame & drum; – Turntable frame; – Driven by parcialized water turbine; – Cast iron turbine flanged on gear-box; – Oil filled multispeed gear box with pto shaft; – Automatic brake; – Electronic speed indicator; – Manometer; – Sprinkler with nozzles’ series; – Sprinkler cart with adjustable track and height; – Drum with 8 m layflat hose with couplings; – Safety hand wheel for pto shaft; – Speed adjustment on indipendent by pass; – Automatic stop at the rewinding end; – Hydraulic cart lifting; – Speed adjustment on main by pass; – Hoseguide system with no end screw; – Adjustable height of the drawhook; – Chassis with adjustable height and two lateral front legs; – CE mark and certification;
