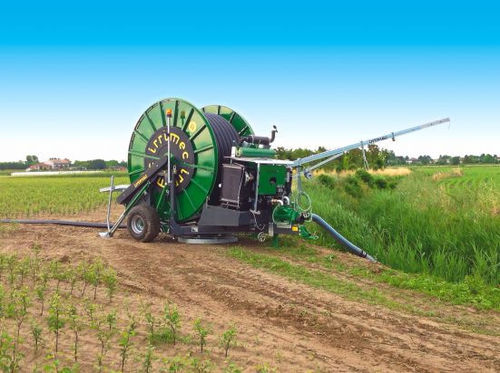

Irrigation pump MASTER MF3 MP

mobilegearturbine

Model with hot galvanised ground support platform, giving 360° turntable rotation.Structure shot-blasted treated with 2 applications of powder coating epoxy anti-corrosive primer and a top coat of polyesthere paint with high shock resistence, high atmospheric resistance and long lasting. Hydraulic system which operates the support legs, jack, wheels, turntable rotation and lifts up the trolley, with hoses complete with quick couplers for connection to the hydraulic system of the tractor on turbine model, independent on the machine with auxiliary hydraulic power unit. STANDARD EQUIPMENT ​​•Motor IVECO F32 MNSA01.00 83 HP with Caprari pump MEC MG 80/A •ELCOS control box CEM 250 •Manual priming pump •Hydraulic kit for jack, turntable rotation lifting trolley and anchor stabilizer legs, driven by the tractor's hydraulic system. •Three wheel trolley, symmetric, fixed body with weights •Standard sprinkler with nozzles •Larger wheels 400 x 15.5 •Tachometer showing pull-in speed •Crank for winding in hose •Pressure gauge in glycerine bath and gauge cock •Operator's manual and spare parts list
