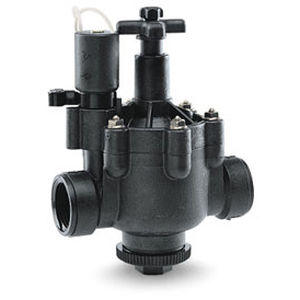

.Globe/angle configuration (G/A)
.Accepts Irritrol OmniReg pressure regulator
.Female thread BSP 1" - 11/2" - 2" - 3" (NPT available on request)
.Flow control (FC)
.Brass flow control stem (2" and 3" mod.)
.Internal and external manual bleed
.Body and cap in Nylon reinforced with fiberglass (30%)
.Molded-in brass studs allow positive bonnet attachment
.Captive Solenoid (the plunger is retained in the solenoid)
.Slow, anti water hammer closing
.Rugged, nylon-reinforced Buna-N double-beaded diaphragm
.O-ring gasket on unused inlet cap guarantees hermetic seal and does not require Teflon
.Self-cleaning control orifices
.Working pressure: 0,7 to 13,8 bar
.Solenoid 24VAC 50Hz (24VAC 60Hz on request)
- Inrush current, 0,34 Amp.
- Holding current, 0,20 Amp.
Applications
Commercial irrigation
