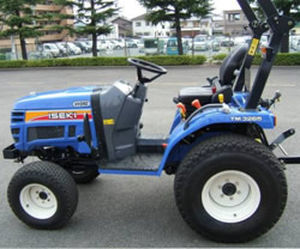

Sub-compact tractor TM Series

hydrostaticcompactwith ROPS

TM tractors provide excellent performance and high efficiency for professional and private users. The horsepower of 25, 23 and 20PS is selectable, and total 12 models in the line-up including transmission type. Mechanical transmission or HST and ROPS type Center or Rear mounting are available for their landscaping and agricultural applications. Depending on the usage of tractor, transmission and ROPS type are selectable either mechanical or HST and center or rear type. Engine For various application, large displacement engine of 1.5 Liter is mounted on TM3267 and 1.1Liter engine is mounted on TM3247 and TM3217. Transmission Main gear and range shift levers are located on left fender where is easy to access from operators' seat. Depending on purpose of customer, 2 types of transmission are available. Mechanical transmission Main gear has 4 speeds and sub gear has 2 ranges. Forward and reverse direction can be changed by shuttle lever. HST Cruise control / auto accelerator are equipped and sub gear has 3 ranges. Following functions are equipped on HST version for convenient operation. Operator can engage and disengage PTO independently from travelling. Depending on implements size, two modes PTO engagement is available. Hydraulic The height of 3-point linkage is set by position lever. 2 banks aux. hydraulic valves (selectable single or double acting) are equipped as standard for HST version. 1 banks aux. hydraulic valve (selectable single or double acting) is equipped as standard for mechanical transmission version.
