Fruit tree shaker RS100

almondpecanhazelnut

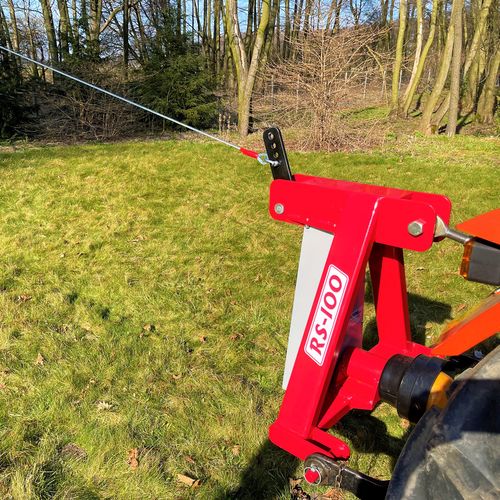

Rope tree shaker: simple, reliable, efficient The rope tree shaker RS100 can save time and labour especially for farmers who have few trees. it designed to harvest stone fruits for big, medium and small trees such as walnuts, almonds, apricots, plums, sour-cherries, olives, cider and others. The RS 100 shaker is mounted via the three-point linkage at the front or rear of the tractor. It is driven by a PTO with a profile 1 3/8 ” 6 splines. • It is equipped with a steel rope 10 m long and 8 mm in diameter, which is attached to a branch or trunk of a shaken tree. Other rope lengths are also available on request. • Additional options: the machine has an option to use a telescopic pole with a length up to 6 m, which greatly facilitates hooking the rope. • The device is designed for both small and big trees. • The output from 10 to 25 Trees/Hour depend on the size of trees. Mounting method - 3-point Linkage CAT 2 Front and Rear Rope length - 10 m (other lengths available on request) Rope diameter - 8 mm Telescopic pole Length optional - 6 m PTO Profile - 1.3 / 8 ”PTO profile 6 splines Width - 870mm Height - 840mm Length - 520 mm Weight - 70 kg
