Portable hydraulic power pack AHF

air-cooledoil-cooledPTO-driven

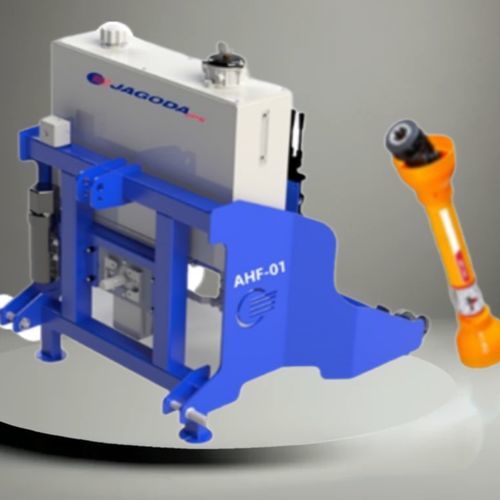

PTO Hydraulic Power Packs The PTO-driven AHF-01 hydraulic power pack delivers a reliable and efficient source of hydraulic power for diverse machines requiring strong drives. It offers up to 70 L/min of additional flow. AHF-01: Choice for High-Efficiency PTO Hydraulic Power kit is designed to provide a reliable and efficient source of hydraulic power for a wide range of machines. * Robust construction: Engineered for durability and reliable operation in diverse and demanding conditions. The design includes optional lower link hooks compatible with CAT 1, 2, and 3, enabling the attachment of various agricultural machines weighing up to 600 kg to the rear of the hydraulic unit. * High-quality components: Each element is carefully selected to guarantee optimal performance and longevity. This includes: - 75-liter oil tank capacity with a filter system - Hydraulic Pump with a maximum flow of 70 l/min - An efficient oil cooler with thermostat set to max. 60°C - 2 pairs of hydraulic couplers - Directional Control Valve, 2 Sections with capacity up to 80 l/min. - Relief valve - PTO Shaft - Optional lower link hooks compatible with CAT 1, 2, and 3 * Designed to provide additional hydraulic power to various orchard machines, such as the inter-row weeder and viticultural weeding machine, which may not receive sufficient oil flow from the tractor’s hydraulic system. *The hydraulic power pack is mounted at the rear of the tractor’s 3-point linkage (CAT 1, 2) and is powered by the tractor’s PTO drive. Technical Specifications: Max. Pressure: 230 Bar Nominal pressure 190 Bar Nominal PTO Input: 540 rpm Width x Height x Length: 1200mm x 1200mm x 1050 mm Net weight 250kg
