Loader tree shear 200R
telescopicwith cutting bladeversatile

Loader tree shear - 200R  - Jak tree shear - telescopic / with cutting blade / versatile
Loader tree shear - 200R  - Jak tree shear - telescopic / with cutting blade / versatile
Loader tree shear - 200R  - Jak tree shear - telescopic / with cutting blade / versatile - image - 2
Loader tree shear - 200R  - Jak tree shear - telescopic / with cutting blade / versatile - image - 3
Loader tree shear - 200R  - Jak tree shear - telescopic / with cutting blade / versatile - image - 4
Loader tree shear - 200R  - Jak tree shear - telescopic / with cutting blade / versatile - image - 5
Loader tree shear - 200R  - Jak tree shear - telescopic / with cutting blade / versatile - image - 6
Add to favorites
Compare this product


Characteristics

Options
for loaders, versatile, telescopic, with cutting blade
Jaw opening

600 mm
(23.6 in)

Description

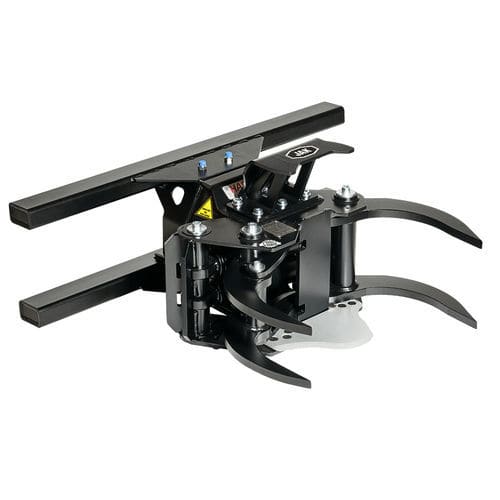

The JAK-200R is the smallest model in the R-Series for smaller size wheel loaders and telehandlers. The JAK-200R is ideal for fast and efficient clearing of street curbs and park areas, for example. By replacing the rear end, it is also possible to harness the JAK-200R for use in small excavators, for example. Developed for heavy-duty use, the JAK-200R cuts the wood to be harvested neatly and precisely from the desired point. With this agile and strong tree shear, clearing of wood is easy even up to 20 cm (7,8 in) thick tree trunks. The JAK-200R’s wide opening of 600 mm (23,6 in) makes it easy to catch and cut several small trees at once. The design-protected structure takes an unmistakable grip on the wood. Thanks to its agile and fast movement, trees and shrubs can be cleared quickly even from a larger area. If necessary, the cutting blade can also be removed, in which case the tree shear acts as a normal wood grapple. JAK-200R tree shear specifications Weight: 142kg (313 lbs) Multimount -adapters weight: 46 kg (101 lbs) Cutting diameter: 200 mm (7,8 in) Working pressure: 200-300 bar (2 900-4 351 psi) Minimum oil flow: 30 l/min (7,9 gal/min) Height: 420 mm (16,5 lbs) Operating machines The JAK-200R can be equipped with the most standardized attachment methods for wheel loaders and telehandlers. Examples of suitable machines are: Skid steer loaders Wheel Loaders Telescopic handlers By replacing the rear end, it is also possible to harness the JAK-200R for use in small excavators, for example.
