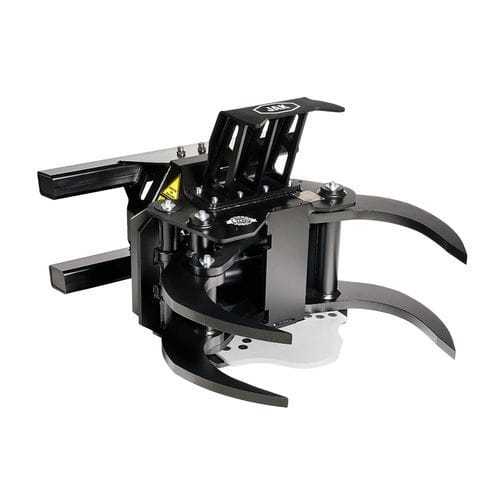

The JAK-300R is designed for use with 6 to 21-ton kg (13227-46297 lbs) wheel loaders and telehandlers with a maximum lifting capacity of at least 1300 kg (2866 lbs) or more at their maximum reach. By changing the rear part to be connected to the grapple, it is also possible to harness the JAK-300R for use in excavators, for example.
The jaws of the JAK-300R take an unfailing grip on the wood. With the wide opening of the grapple, several trees can also be cut at once, and the force of the grapple does not coagulate even with a large mass. Due to its large size, the JAK-300R easily cuts a tree’s diameter up to 30cm (11,8 in) thick. At the same time, it is also ideal for felling into smaller stands, as its handling is precise and effortless.
The wood that has been firmly pressed by the grapple is neatly cut thanks to the grapple cutting blade. If necessary, the cutting blade located below the JAK-300R can also be removed, in which case the energy grapple acts as a normal wood grapple.
JAK-300R tree shear specifications
Weight of the Tree Shear: 510 kg (1124 lbs)
Multimount -adapters weight: 107 kg (235 lbs)
Cutting diameter: 300 mm (11,8 in)
Working pressure: 250-300 bar (3 625-4 351 psi)
Minimum oil flow: 60 l/min (15,8 gal/min)
Height: 670 mm (26,3 in)
Operating machines
The JAK-300R can be equipped with the most standardized attachment methods for wheel loaders and telehandlers. Examples of suitable machines are:
Skid steer loaders
Wheel Loaders
Telescopic handlers
By replacing the rear end, it is also possible to harness the JAK-300R for use also in excavators, for example.
