Forestry tree shear 300R
handlingfelling

Forestry tree shear - 300R - Jak tree shear - handling / felling
Forestry tree shear - 300R - Jak tree shear - handling / felling
Forestry tree shear - 300R - Jak tree shear - handling / felling - image - 2
Forestry tree shear - 300R - Jak tree shear - handling / felling - image - 3
Forestry tree shear - 300R - Jak tree shear - handling / felling - image - 4
Forestry tree shear - 300R - Jak tree shear - handling / felling - image - 5
Forestry tree shear - 300R - Jak tree shear - handling / felling - image - 6
Add to favorites
Compare this product


Characteristics

Options
forestry, handling, felling
Jaw opening

840 mm
(33.1 in)

Description

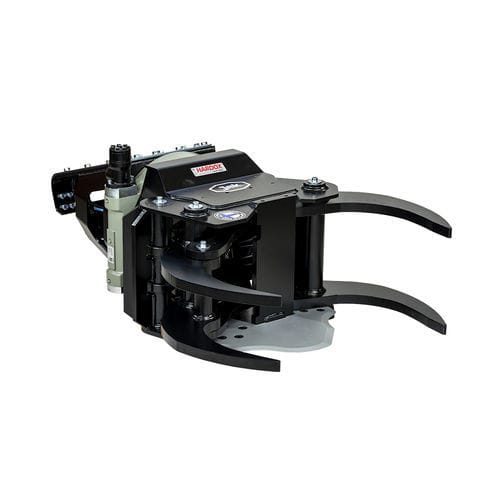

Equipped with the excavator adapter, the JAK-300R is a powerful tree shear designed for use in larger size excavators weighing over 12 tons (26455 lbs). By changing the adapter to be connected to the grapple, JAK-300R is also possible to harness for use in loaders and telehandlers, for example. The jaws of the JAK-300R take an unfailing grip on the wood. With the wide opening of the grapple, several trees can also be cut at once, and the force of the grapple does not coagulate even with a large mass. Due to its large size, the JAK-300R easily cuts a tree’s diameter up to 30cm (11,8 in) thick. At the same time, it is also ideal for felling into smaller stands, as its handling is precise and effortless. The wood that has been firmly pressed by the grapple is neatly cut thanks to the grapple cutting blade. If necessary, the cutting blade located below the JAK-300R can also be removed, in which case the energy grapple acts as a normal wood grapple. JAK-300R tree shear for excavators specifications Weight of the tree shear: 570kg (1256 lbs) Weight of the excavator adapter: (include the bolt plate): 103 kg (227 lbs) Cutting diameter: 300 mm (11,8 in) Working pressure: 250-300 bar (3 625-4 351 psi) Minimum oil flow: 60 l/min (15,8 gal/min) Impact plate height: 505 mm (19,8 in) Length (with the rotator and excavator adapter): 1900 mm (78,8 in) Width (with the rotator and excavator adapter): 1150 mm (45,2 in) Height (with the rotator and excavator adapter): 600 mm (23,6 in) Coupling Common excavator attachments In special order by customer’s machine type JAK-300R Tree shear features ➔ CE approved ➔ Made in Finland ➔ Two-year warranty ➔ Removable blade

VIDEO
