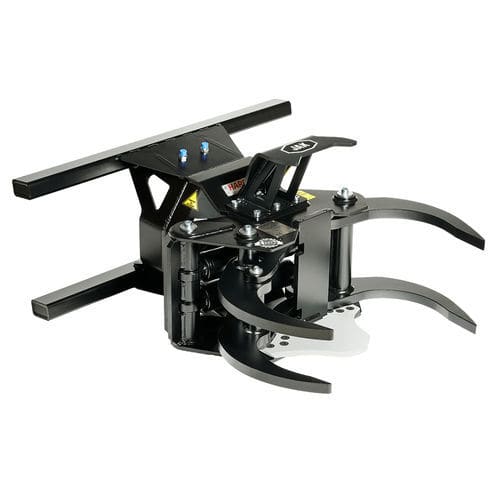

Loader tree shear 250R
with cutting blade

Loader tree shear - 250R - Jak tree shear - with cutting blade
Loader tree shear - 250R - Jak tree shear - with cutting blade
Loader tree shear - 250R - Jak tree shear - with cutting blade - image - 2
Loader tree shear - 250R - Jak tree shear - with cutting blade - image - 3
Loader tree shear - 250R - Jak tree shear - with cutting blade - image - 4
Loader tree shear - 250R - Jak tree shear - with cutting blade - image - 5
Loader tree shear - 250R - Jak tree shear - with cutting blade - image - 6
Add to favorites
Compare this product


Characteristics

Options
for loaders, with cutting blade
Jaw opening

690 mm
(27.2 in)

Description

Equipped with the Avant adapter, the JAK-250R is an efficient tree shear designed for use in Avant loaders. By changing the adapter to be connected to the back of the grapple, JAK-250R is also possible to harness for use in other loaders and medium size excavators too. The structure with two cylinders cuts the trees efficiently and precisely up to a thickness of 25 cm (9,8 in). The jaws and high profile of the JAK-250R tree shear take a firm and unmistakable grip on the wood. With the JAK-250R’s wide 690 mm (27 in) opening, it is also easy to cut several trees at once. The firmly pressed wood is cut precisely and neatly thanks to a cutting blade shaped for the purpose, after which the wood material firmly attached to the grapple can be lifted to the desired location. If necessary, the cutting blade can be removed, in which case the tree shear acts as a wood grapple. JAK-250R tree shear specifications Weight: 270kg (595 lbs) Cutting diameter: 250 mm (9,8 in) Working pressure: 250-300 bar (3 625-4 351 psi) Minimum oil flow: 60 l/min (15,8 gal/min) Impact plate height: 390 mm (15,3 in Avant adapter This JAK-250R is equipped with an adapter suitable for Avant-type machines. By replacing the adapter the 250R can also be harnessed for use in other loaders or excavators too. JAK-250R Tree shear features ➔ Warranty 2 years ➔ CE approved ➔ Made in Finland ➔ Removable blade ➔ Operation with two cylinders ➔ Made by Hardox Steel ➔ Agile and efficient

VIDEO
