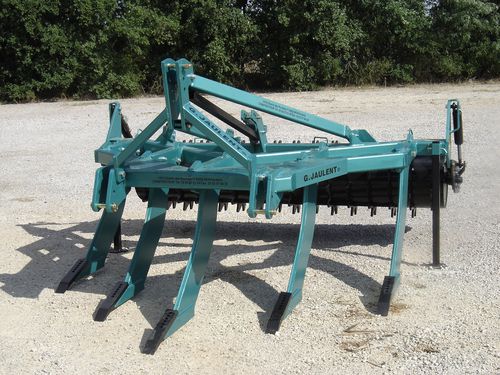

5-shank subsoiler DP5DR

with hydraulic adjustment3-point hitchfixed

Parallel double V-frame made of high-grade steel tube with a large cross-section to ensure good load distribution on each beam. Third point triangle and tubular, non-deformable counter plug. The blade supports are made of high resistance steel. These have a judiciously studied shape to allow the most agronomic work possible, less clods, low absorbed power as well as a very good penetration in the ground. No surface disturbance, no rotation or inertia of the clods, simply cracking and lifting of the soil. The blades are protected over their entire surface by steel wear parts. Each blade is secured by a shear bolt that breaks at 28 tonnes, which allows work to be carried out in the most difficult conditions. The shares are made of forged and hardened steel. The roller is of mixed bar and disc design and covers the whole working width, or packer roller. They are mounted on Timken® double bearings that react to vertical and lateral forces, allowing you to work on slopes. This allows you to work in optimal conditions. In addition, the roller allows the load to be transferred to the front axle, thus ensuring perfect transmission of power to all four wheels. The depth adjustment can be done by screw jack or hydraulic jack. Technical specifications: ⦁ Interchangeable ploughshares. ⦁ Clearance under frame = 0,80cm
