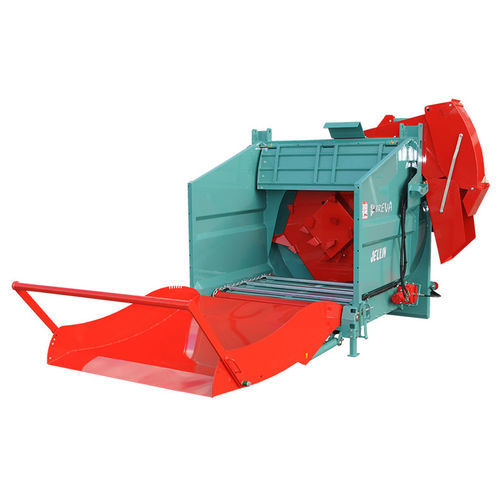

Mounted straw bedder BREVA FORCE 2

beddingfor feedbedding

Loading Hydraulic rear door with 2 cylinders low axe articulation caught in screed Shredding – Dispensing – Mulching Shredding by blower and cone Blower housing width 320 mm in anti abrasive steel (Brinel 430 hb 120 kg steel) Superior protection deflector with hydraulic control in front of the turbine Gearbox 1 gear Lateral bedding chute on the right hand side activated by 1 cylinder Contra-rotating blade in chute issue Bedding from 0 to 18 m with round bale Ø 1,60 m maxi Floor conveyor Conveyor Marine chain Ø 10, bars in removable rectangular tubes with manufactured ends ® Driving of the floor conveyor by moto reductor oil bath, front and rear side with adjustable speed Indicator on the floor conveyor rotation’s way Conception – Safety Removable bottom Dual floor with spring trap door for easy cleaning Bolted housing Control Electric control of all the functions with a mobile control box in the tractor’s cab Road traffic Linkage on the raising Linkage bar categorie 3 provided Transmission PTO transmission with protection and safety bowl machine side Tractor equipment PTO shaft for 540 rpm 1 electric plug 12v/3 pins for electrical distributor 1 hydraulic distributor 1 SE with direct return to the tank 25l/mn minimum flow Linkage categorie 3
