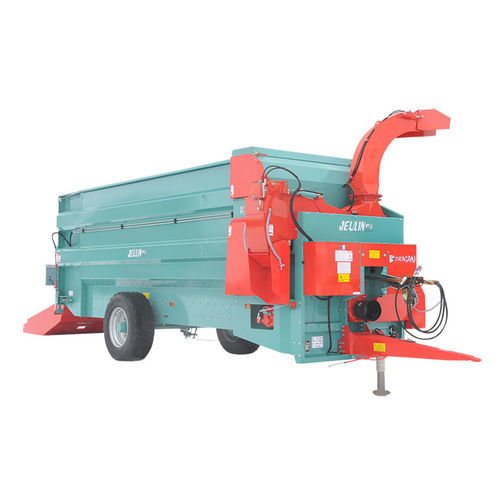

Towed straw blower and feeder Ouragan 140 PM

feedingfor round baleselectric

Loading Rear door manual opening Shredding – Dispensing – Mulching 3 shredding rotors mechanically driven by durable belt and automatic tightening Fixed regulator comb Driving of the 2 upper rotos by double chain Turbine Ø 1600 mm composed of 8 removable paddles Blower housing width 320 mm in anti abrasive steel (Brinel 430 hb 120 kg steel) Visit trap door (blower) 2 speed gearbox (feeding 270 rpm – bedding 540 rpm) with free wheel Lateral chute on the right hand side activated by 1 cylinder Contra-rotating blade in chute issue Dispense up to 18 m on the right with round and square bales Floor conveyor High strength Marine chain Ø 12, bars in removable rectangular tubes with manufactured ends ® Driving of the floor conveyor by moto reductor oil bath, front and rear side with electric adjustable speed Indicator of the floor conveyor rotation’s way Conception – Safety Removable bottom and sides Dual floor with spring trap door for easy cleaning Bolted housing Road traffic Linkage on piton Parking brake and hydraulic brake Light in accordance with the Highway code Hydraulic kickstand with manual pump 1 fixed axle 100×100, 2 wheels 385/65×22,5 CE norms and DREAL homologation
