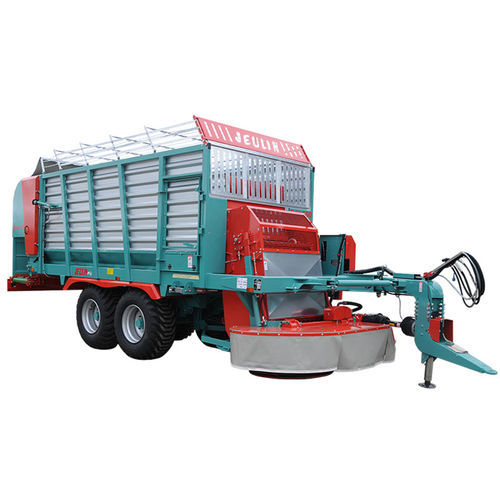

Loader wagon ERES 550

tandem axleagriculturalwith hydraulic braking

Cutting system 2 drums rotary mower (2×4 blades, oil bath case, free wheel incorporated Cutting width 2300 mm Height setting of the rotary cut thanks to 2 hydraulic cylinders Cutting system suspension by 2 springs Conveyor width 1300 mm composed of 11 combs equipped with 11 teeth and 11 blades Hydraulic driving of the conveyor by an hydraulic moto reductor with oil bath Cutting system protection cover Unloading Floor conveyor Marine chain Ø10 bars made of dismantables tubes with manufactured ends ® Driving of the floor conveyor by moto reductor oil bath, flow adjustment 3 shredding rotors hydraulic driving Rear bilateral unloading floor in PVC, width 800 mm and unloading height 1100 mm Rear unloading with a complete hydraulic opening Control Electric control of all the functions with a mobile control box in the tractor’s cab Hydraulic group of the conveyor and the rotors, hydraulic oil tank capacity 295 l. Conception – Safety Bolted housing< Lateral door Road traffic Fixed tandem (standard) Low linkage beam with hydraulic dish Linkage under the transmission Parking brake and hydraulic brake on the 4 wheels Light in accordance with the road code Revolving light Hydraulic kickstand with manual pump CE norms and DREAL homologation
