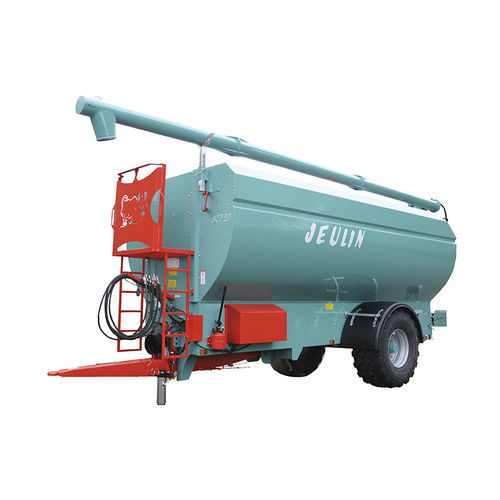

Chaser bin RF2 2-axleagriculturalwith hydraulic braking
Add to favorites
Compare this product
Characteristics
- Construction
- chaser bin
- Number of axles
- 2-axle
- Application
- agricultural
- Brake system
- with hydraulic braking
- Other characteristic
- PTO
- Empty weight
1,990 kg, 2,200 kg, 2,460 kg
(4,387.2 lb, 4,850.2 lb, 5,423.4 lb)- Load volume
20 m³, 24 m³, 28 m³
(706.293 ft³, 847.552 ft³, 988.811 ft³)- Loading case lenght
7.7 m, 8.7 m, 9.7 m
(25'03" , 28'06" , 31'09" )- Loading case width
2.4 m
(7'10" )- Loading case hight
2.3 m
(7'06" )
Description
Screw Ø 200 mm with a big out put until 60 m3/h
Horizontal screw Ø 180 mm and sheet protection
Rising of the screw at 8 m from the floor driving by 1 cylinder (1 SE) hydraulic driving force(1SE)
Hydraulic Orientation of the screw at 360° (1 DE)
Screw driving by PTO shaft for 540 trs/mn
Ladder access with footbridge at the front
Parking brake and hydraulic brake
Light in accordance with Highway code
Hydraulic kickstand
PTO transmission with protection 540 rpm and protection bowl machine side
Total opening with roller tarpaulin for upper part closing
Hydraulic suspension beam
CE norms and DREAL homologation
ADDITIONAL EQUIPMENT :
– 2 compartments with manual opening
– 2 compartments with hydraulic opening (2 DE)
– 3 compartments with manual opening
– 3 compartments with hydraulic opening (3 DE)
– Additional charge for screw 1 m
– Additional charge for screw 1,50 m
– Additional charge for screw 2 m
– Hydraulic driving force of the upper screw (1 SE débit 30l/mn minimum)
– Hydraulic orientation of the upper screw (1 DE)
– Hydraulic folding of upper screw
– Boggie 4 wheels 425/65 R22.5 with mudguard
– Boggie follower with hydraulic lock (1 SE)
– Electrical distributor CETOP 5 (for hydraulic driving of the upper screw)
– Electric control 2 functions
