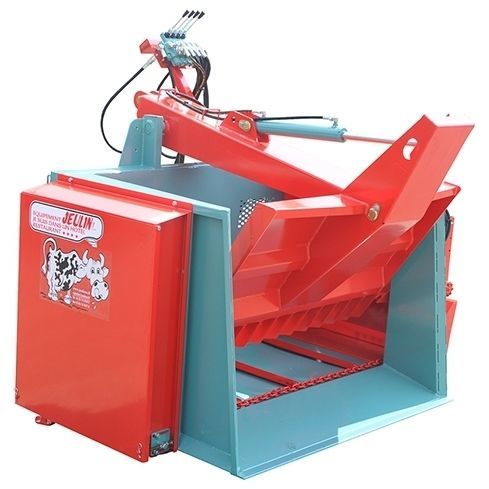

Silo-unloading
Silo unloader with rake
1 cylinder on arm out of the body
1 cylinder on shovel out of the body
Shredding – Dispensing
1 shedding rotor driven by hydraulic motor
1 cylinder on the unloading deflector
Trap door of unloading opposite the shredding rotor (manual)
Left or right unloading
Floor conveyor
Floor conveyor with marine chain Ø 10 and rectangular tubes
Floor conveyor driving by chain and gearwheel
Conception – Safety
Bolted housing
Control
Manual distributor on support which can be set
Road traffic
Linkage 3 points (2 positions) with provided bar categorie 2
Tractor equipment
1 hydraulic distributor 1 SE with direct return to the tank
ADDITIONAL EQUIPMENT :
– Elevator with manual control (dispensing 0,50 to 1,20 m)
– Unloading hopper 150 L
– Electric slide valve 4 functions with mobile box in the tractor cab
– Electric slide valve 5 functions
– Additional function
– Flow regulator (advised if the tractor hydraulic flow is upper than 50l/mn)
– Watertightness plate on the shovel
– Oil filter on hydraulic circuit
– Rear light articuled in accordance to the Highway code
