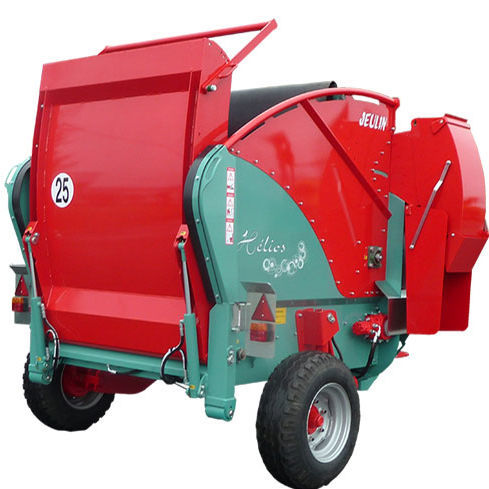

Mounted straw bedder HELIOS PA

towedfeedingbedding

Loading Rear hydraulic door activated by 2 cylinders Shredding – Feeding – Mulching 1 shredding rotor mechanically driven by durable belt and automatic tightening equipped with 15 big blades predisposed to wrapped silage Chamber with 2 retainers Turbine Ø 1600 mm composed of 8 removable paddles Blower housing width 320 mm in anti abrasive steel (Brinel 430 hb 120 kg steel) partly removable Visit trap door (blower) 2 speed gearbox (feeding 270 rpm – bedding 540 rpm) with free wheel Fixed bedding and feeding mono-chute activated by 1 cylinder with manual dispensing slide or lateral bedding and feeding mono-chute activated by 1 cylinder Dispense up to 18 m on the right with round bales Ø 2 m and square L 2,70 m bales Floor conveyor High strength Marine chain Ø 10, bars in removable rectangular tubes with manufactured ends ® Driving of the floor conveyor by moto reductor oil bath, front and rear side with electric adjustable speed Indicator of the floor conveyor rotation’s way Conception – Safety Removable bottom and sides Dual floor with spring trap door for easy cleaning Bolted housing on hinges Rubber against dust Control Electric control of all the functions with a mobile control box in the tractor’s cab
