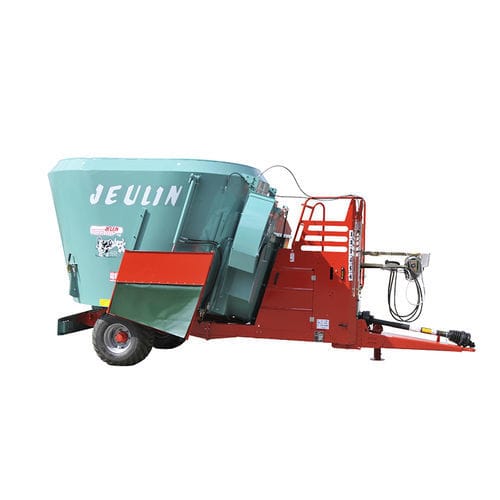

Vertical mixer BORAMEL Force 2

towed2-augersingle-auger

Mixing – Dispensing Vertical conic mixing screw equipped with blades whose 5 with attack angles 2nd scraper on 1 screw model Conic circle with an anti-flood integrated in the vat 2 Gears gearbox 16/32 rpm (manual driving) mixing screw Angle reverser reducer with oil bath (tank 4l) 2 manual vertical contra-rotating blades Tangantial unloading trap door front right or rear left Bedding Front bedder with a big blower 1600 mm Blower composed of 8 removable paddles Blower housing 320 mm width in anti-abrasive steel (Brinel 430 hb steel 120 kg) Blower trap door Bedding trap door opening by 2 outside cylinders Mechanical driving with free wheel and safety frictions Bedding and feeding hute lateral right hand side activated by 1 cylinder Contra-rotating blades in the chute 2 gears gearbox with manual control (dispensing 270 rpm – bedding 540 rpm) Control Electric control 3 functions with a mobile box in the tractor cab Conception – Safety Tubular chassis Weighing DG500, 4 points on independant chassis, 24 programs,18 components with horn Safety casing Adjustable drawbar
