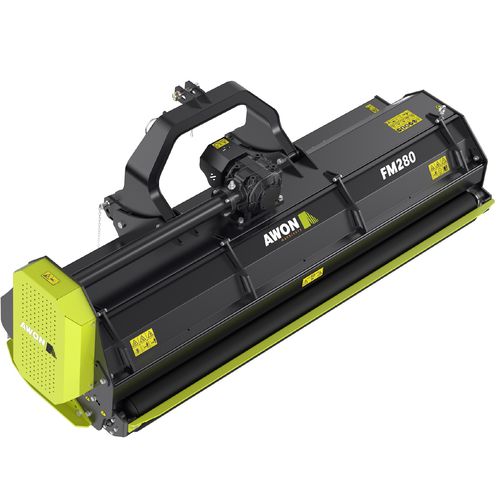

Mounted mower FM260-300
flail24 bladesPTO-driven

Mounted mower - FM260-300 - Jiangsu AWON Machinery and Equipment Co.,Ltd  - flail / 24 blades / PTO-driven
Mounted mower - FM260-300 - Jiangsu AWON Machinery and Equipment Co.,Ltd  - flail / 24 blades / PTO-driven
Mounted mower - FM260-300 - Jiangsu AWON Machinery and Equipment Co.,Ltd  - flail / 24 blades / PTO-driven - image - 2
Mounted mower - FM260-300 - Jiangsu AWON Machinery and Equipment Co.,Ltd  - flail / 24 blades / PTO-driven - image - 3
Add to favorites
Compare this product


Characteristics

Mounting
mounted
Technology
flail
Number of blades
24 blades
Other characteristic
PTO-driven, rough grass, for tractors
Working width

Max.: 3,000 mm
(118.11 in)

Min.: 2,600 mm
(102.36 in)

Power required

Max.: 89 kW
(121 hp)

Min.: 67 kW
(91.1 hp)

PTO speed

540 rpm
(3,392.9 rad.min-1)

Weight

853 kg, 898 kg, 1,022 kg
(1,880.5 lb, 1,979.8 lb, 2,253.1 lb)

Description

FM standard series are rear mounted,PTO driven flail mowers for tractors, working width varies from 2,600 to 3,000mm,power demand 90-120HP.FM series are designed for general maintenance of lawn,park,orchard,meadow and weed cut for undeveloped areas. The mowers cut the grass and spread it properly crumbled along the whole width of the cut surface. It enables forming a natural swath and plant offcut mineralization. Perfect ground following and even cutting height Automatically Belt-tension Overrunning clutch integrated with gearbox Housing can be lifted to leave the residues back to the field Offset Options:SD swing arm or HD swing arm Guard Options:Chain guard or metal plate guard Blade Options:Hammer or Y Blades SD550 could pass the obstacle and automatically return,HD550 could detect obstacles hydraulicly without touching.
