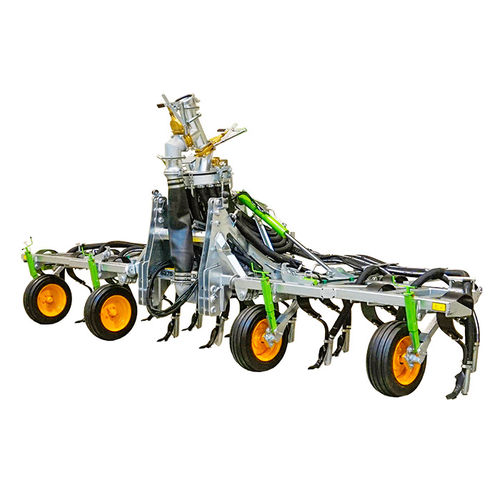

Mounted slurry injector TERRAFLEX/2 XXL

tine

General Points The Terraflex/2 XXL arable injector is made of a galvanised double-beam frame with two rows of Everstrong spring tines (h.: 680 mm) with 6.5-cm wide shares at their ends. The shape of the tines allows a better loosening of the ground thanks to their vibrating effect, a good mixing of the vegetable residue and a perfect tearing of the plough soil for a better preparation of the seed bed. The wide opening of the shares ensures a very good flow of the slurry and a wide distribution. The distance between the tines is 30 cm or 37.5 cm (depending on the model) and the distance between the 2 rows is 70 cm. This wide spacing prevents any clogging of the soil and crop residues as well as the "rake" effect. Slurry is usually injected on a 12 to 15 cm working depth. The standard gauge wheels allow to limit and adjust the injection depth. The flexibility of the spring tines protects the injector against damaging obstacles. In short, the Terraflex/2 XXL is a multipurpose injector, which is ideal for stony and non-sandy grounds. Structure Arable injectors make it possible to inject slurry deeply. They also loosen the ground. They are fastened on a double-beam frame reinforced by radiant crosspieces. The main advantage of this assembly is that it focuses the strains of the implement on the tanker, which then transfers them to the tractor. The stress is therefore reduced and the tank is not subjected to distortion. The basic frame is modular for all models: wide models are manufactured on the basis of the 2.60 m models with extensions.
