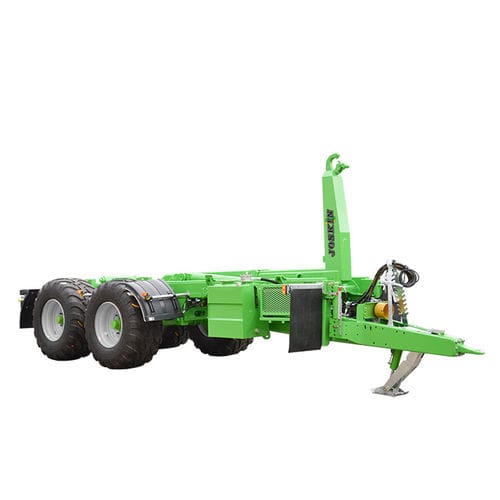

Hook lift trailer CARGO-LIFT CLX

mounted2-axleagricultural

General Points The JOSKIN CLX hook-lift system is designed for users who are looking for a professional solution for intensive use. Either on the road, as a transport vehicle, or in the field, the Cargo-Lift CLX is the ideal hook-lift system to meet all your requirements. Available with a double or triple axle and a pullout force of the hook from 20 to 30 t, it is the ideal machine for your containers and implements on a platform from 4 m to 7.5 m. It already has a rather complete standard equipment (with a hydraulic drawbar suspension, a hydraulic running gear and a fully electrohydraulic control), but it can be fitted with an automatic lubrication unit or a tyre inflation system as an option. Specifications Hook-Lift System The CLX models are fitted with a system with a telescopic front arm with a welded hook in non-deforming steel (height of the hook: from 1,410 to 1,570 mm). Their reinforced chassis is made of 8-mm thick special Domex 690 steel, making this hook-lift system a reliable and foolproof machine. The containers are locked by means of powerful hydraulic hooks, working from the inside to the outside. Industrial Hydraulic System On the CLX models, the system is fed by an independent industrial hydraulic pump with Load Sensing, delivering 140 l/min at 300 bar, to load and unload the containers. In addition, they have a complete electrohydraulic control of the 3 functions of the hook, as well as of the functions of the running gear.
