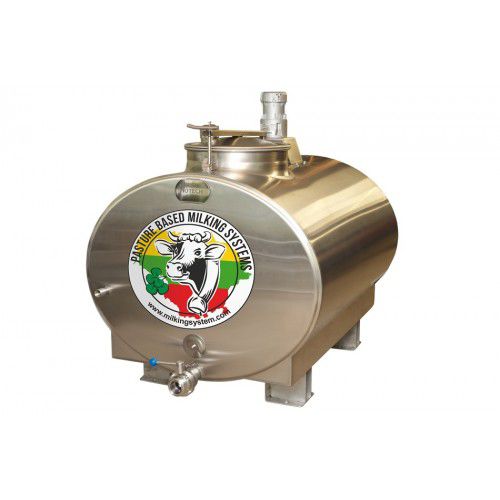

Milk tank MOOTECH-2000L
mobilehorizontalstainless steel

milk tank
milk tank
milk tank
Add to favorites
Compare this product


Characteristics

Fluid
for milk
Construction
mobile, horizontal
Material
stainless steel, steel
Other characteristic
with cooling system, smooth-wall
Volume

2,000 l
(528 gal)

Description

CONSTRUCTION: Stainless steel 18/10, DIN 1.4301 (AISI 304). TANK TYPE: Horizontal elliptic type tank. Inner vessel stainless steel thickness: 2,00mm. Outer vessel stainless steel thickness: 1,50mm. Insulation type: INTERVOL RFN-24. Insulation is succeeded by precise controlled infusion of high density environment friendly polyurethane foam. Two components polyurethane rigid foam system. Blowing agent used is HCFC-141b (CFC – free system). Density: 40kg/m3 (DIN53420). Compressive strength: 20kPa (DIN53421). Thermal conductivity, 24 °C: 0. 023 W/m. °K (DIN18164). Smooth inner sides, rounded angles, perfectly polished welding. Stainless Steel Butterfly valve SMS50 Ø50,8mm is installed on each the milk outlet. PVC cap DN50 and stainless steel chain. Stainless steel AISI304 manhole Ø400mm, elevated to avoid overflowing, watertight. Pre-installation for CIP with washing tube Ø25mm and spray ball. Stainless steel ventilation cap, suitable to be used as milk inlet. Stainless steel legs, special design for the proper mounting on truck. Cooling unit – COPELAND , scrole type suitable for transportation; Control panel; Milk pump.
