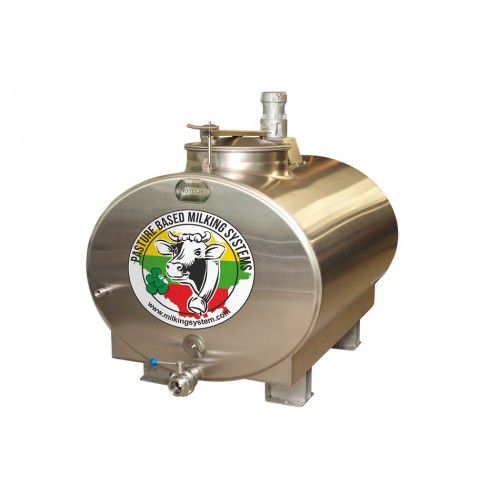

Milk tank MOOTECH-3000L

horizontalstainless steelsteel

CONSTRUCTION: Stainless steel 18/10, DIN 1.4301 (AISI 304). TANK TYPE: Horizontal elliptic type tank. Inner vessel stainless steel thickness: 2,00mm. Outer vessel stainless steel thickness: 1,50mm. Insulation type: INTERVOL RFN-24. Insulation is succeeded by precise controlled infusion of high density environment friendly polyurethane foam. Two components polyurethane rigid foam system. Blowing agent used is HCFC-141b (CFC – free system). Density: 40kg/m3 (DIN53420). Compressive strength: 20kPa (DIN53421). Thermal conductivity, 24 °C: 0. 023 W/m. °K (DIN18164). Smooth inner sides, rounded angles, perfectly polished welding. Stainless Steel Butterfly valve SMS50 Ø50,8mm is installed on each the milk outlet. PVC cap DN50 and stainless steel chain. Stainless steel AISI304 manhole Ø400mm, elevated to avoid overflowing, watertight. Pre-installation for CIP with washing tube Ø25mm and spray ball. Stainless steel ventilation cap, suitable to be used as milk inlet. Stainless steel legs, special design for the proper mounting on truck. Cooling unit – COPELAND , scrole type suitable for transportation; Control panel; Milk pump.
