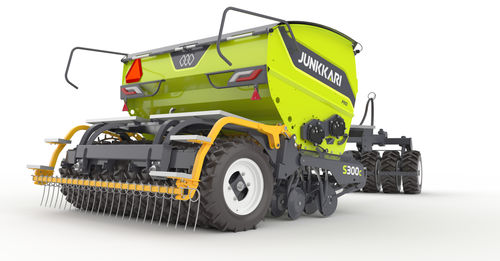

Mechanical seed drill S

disctinecoulter

S model performs best on soft, traditionally tilled soil. It is Junkkari’s lightest combi seed drill model to pull.The coulter is designed to guide the seed and fertilizer to the correct depth in soft soils. The coulter profile supports the coulter on soil so that the sowing depth is optimal. Coulter pressure range for the S model is 10-60 kg, and adjustment can be made hydraulically from the cabin. With the largest hoppers on the market, the S model ensures efficient and economical operation by reducing the frequency of refills. The S model is available in 3 and 4-meter widths. Its concept is based on the wedge-shaped coulter, which maintains sowing depth accurately in various conditions. The long arm of the coulter allows flexibility and places the seed precisely even when soil types vary. The S model performs best on plowed and subsequently harrowed fields. On soft soil types, it is particularly important to prevent sowing too deep to maximize the yield. Junkkari’s two-part hopper is exceptionally spacious. By turning the partition wall, the relative volumes of seed and fertilizer hoppers can be adjusted. The hopper volume is 4200 liters in the 3-meter machine and 5700 liters in the 4-meter machine. The coulter pressure range of the S model is 10-60 kg, due to the hydraulic coulter pressure adjustment. Light to pull and cost-effective The mechanical feeding system is simple, precise, and reliable. Junkkari’s feeding mechanism is built on a mechanical drive that adapts to the driving speed. The feed mechanism works reliably in all situations, even without electricity from the tractor.
