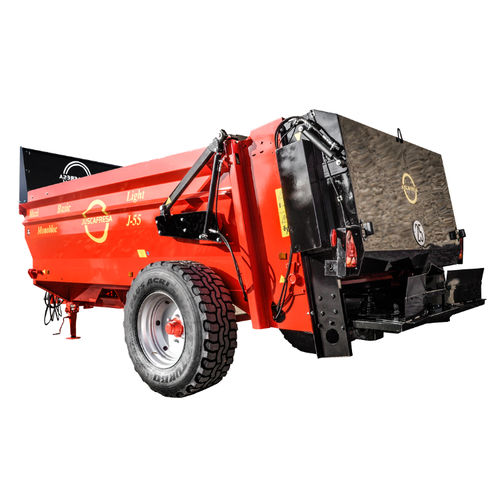

Towed manure spreader LMH2 series

horizontals beaterssingle-axlevineyard

Manure spreaders / muck spreaders agricultural trailers Juscafresa. Destined for medium agriculture works / farms of fruit trees such as olive trees, avocado trees, apple trees and others. Stands out for its excellent spread quality between fruit trees. Standard equipped with: Drag system 2 chains 80/12 C 10 + S 275 JR Double horizontal beater with welded spades and with 2 lower discs Hydraulic back cover compass type guided with synthetic belt for the closing hydraulic back cover Fixed removable manure locator cover Silentblock drawbar Spreader system ​Double horizontal beaters with screwing flat spikes and with 2 lower discs. The lower plates are protected by plates in order to avoid the material fall directly to the floor and ensuring it is spread through the back without falling below the machine and getting it dirty. ​Optional: Reduction double horizontal beaters with screwing flat spikes. Adjustable and dismountable manure direction system, central direction. Adjustable and dismountable manure direction system, side direction to both sides. Adjustable and dismountable manure direction system, side direction in line and to both sides special for vineyard. Material steel ​4mm side thickness of standard and floor thickness of 3mm. Drive shaft Bondioli & Pavesi ​Security screw of standard or homokinetic joint optional front transmission and overrunning clutch and back transmission with overrunning clutch. Drag system ​Kit of 2 or 4 chains 80/12 manufactured with material C10 + S275 JR. Manual independents tensors. Reducer ​Hydraulic advance chains with reducer 1/16,4. Velocity commandment from the chains ​Manual velocity commandment from the chains floor. ​
