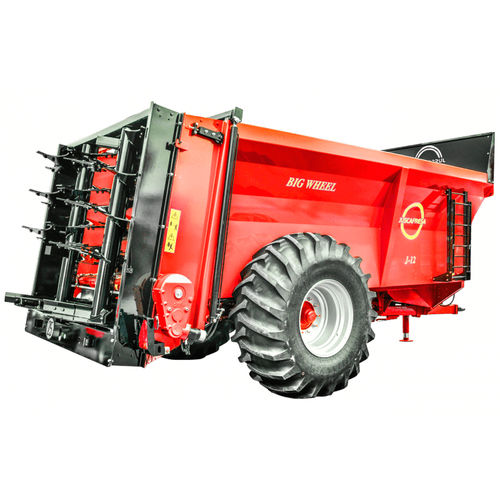

Towed manure spreader E11LBW2042001

verticals beaterssingle-axle

MANURE SPREADERS LIGHT BIG WHEEL LBW2 Manure spreaders / muck spreaders agricultural trailers Juscafresa. Destined for large agriculture works / farms. Capacity from 9,12m3 a 14,30m3. Stands out for its excellent spread quality, the high compact load capacity, stability on the grounds with different heights and reduction of the tractive force by decreasing the friction force against the ground. Light version of the CBW2 series. Standard equipped with: Drag system 2 chains 80/12 C 10 + S 275 JR, 4 chains 80/12 C 10 + S 275 JR or 80/12X 20 Mn 4 + S 355 JR Veritcal beaters of 2 columns chopping type group B 540/330 rpm and height 2030 mm ou group P 540/390 rpm and height 2200 mm with screwing flat spikes Hydraulic back cover with vertical opening type guillotine with cylinder compensation system Silentblock drawbar or drawbar with parabolic transversal springs of 2 leaves Axles according to model: ESH100 400x80: Square straight axle 100mm, 2100 track, 10 bolts, brakes 400x80 ESH110: Square straight axle 110mm, 2230 track, 10 bolts, brakes 400x120
