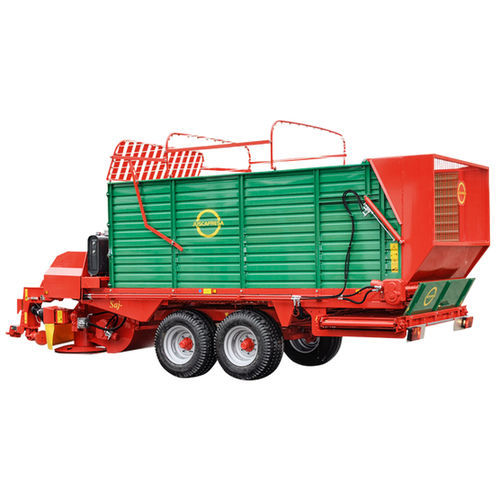

Loader wagon DLH series

2-axlesingle-axleforage

Zero grazer agricultural trailers Juscafresa. Destined for mowing and forage transport. Stands out for its system that starts with the movement of the plates that creates air turbulance that helps to move the feed into the bottom of the elevator. During the mower operation, the elevator put the forage on the front part of the trailer, and then the floor chains moves the material from the front to the back part of the trailer. ​Standard equipped with: Hydraulic installation system to use the elevator Fodder hydraulic back cover compass type Bilateral unloading by chains 2160x900 mm and with hydraulic displacement to the back part by hydraulic motor Cutting width 1900 mm Hydraulically displaceable drawbar Axles according to model: E60: Square simple axle 60mm, 1500 track, 6 bolts, brakes 300x60 EBI70: Rocker axle 70 mm, track 1520, 6 bolts, brakes 300x60 Mowing system ​The process consists of cutting the fodder by the mower plates which at the same time makes an air turbulence that helps the entrance of the fodder to the bottom of the elevator. ​The elevator has the function of raising the cut forage towards the front part of the trailer where the material will accumulate and will move towards the rear by the drag chains. Plate mower ​The top plate has three blades that create air turbulance that helps to move the feed into the bottom of the elevator. ​The lower plates are entirely independent from the top plates and turning by the friction on the ground. Mower ​Mower with 1900mm of cutting width Hydraulic independent system ​Hydraulic independent system to use the elevator and dispenser. ​
