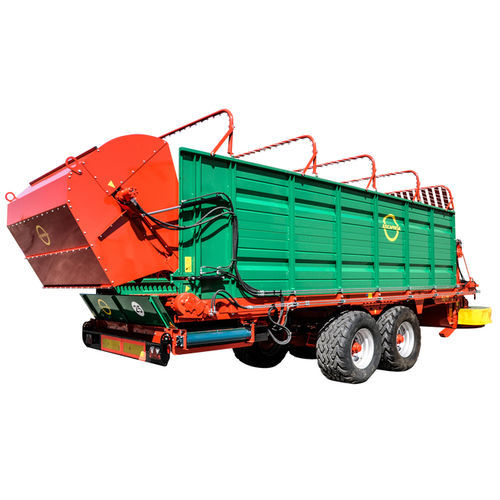

Zero grazer agricultural trailers Juscafresa.
Destined for mowing and forage transport.
Stands out for its system that starts with the movement of the plates that creates air turbulance that helps to move the feed into the bottom of the elevator. During the mower operation, the elevator put the forage on the front part of the trailer, and then the floor chains moves the material from the front to the back part of the trailer.
Standard equipped with:
Hydraulic installation system to use the elevator and the dispenser motors with refrigeration system
Bilateral unloading by rubber conveyor chains 2360x900 mm with hydraulic displacement to the back part and hydraulic motor for its working
Dispenser provides continuous distribution for the unloading by two hydraulic motors, with electrohydraulic pressure switch that controls the advance of the floor chains
Cutting width 2100 mm
Hydraulically displaceable drawbar
ECI100: Square rocker axle 100 mm, 1900 track, 10 bolts, brakes 400x80
Mowing system
The process consists of cutting the fodder by the mower plates which at the same time makes an air turbulence that helps the entrance of the fodder to the bottom of the elevator.
The elevator has the function of raising the cut forage towards the front part of the trailer where the material will accumulate and will move towards the rear by the drag chains.
Plate mower
The top plate has three blades that create air turbulance that helps to move the feed into the bottom of the elevator.
The lower plates are entirely independent from the top plates and turning by the friction on the ground.
