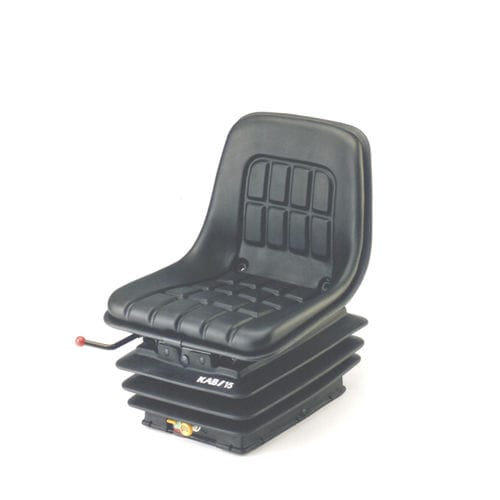

Tractor seat Air 15/P1

with pneumatic suspension

Air suspension seating for vineyard and compact tractors Features - Air suspension with a 12v integral compressor - Vertical suspension stroke 80mm (3 1/4") - Integral height adjustment 0-30 or 70mm - Driver weight adjustment 50-120 (110-265lb) - Ride indicator - Suspension cover - Fore and aft adjustment 150mm (6") - Integral one piece foam and PVC trim - Rigid steel pan - Ventilation and surface drainage grooves - Drainage holes in base Options - Air suspension with a 24v integral compressor - Horizontal isolator - Seat belt widths 50mm (2") - Backrest extension - Fabric trim - Dino Moonstone (as shown) - Variable up-stop TECHNICAL INFORMATION - Meets EEC 78/764 with amendments 83/190 and 88/468 Class I, II and III - Meets flammability standards FMVSS 302 and ISO 3795 (<250mm/min) - Seat belt anchorages to ISO 3776, ISO 6683 and SAE J386 with alternative slide rails - SIP to ISO 5353 - Dimensions at mid suspension stroke, middle height adjustment and at mid rail adjustment - Indicative dimensions - 11/P1 shown ADDITIONAL INFORMATION This model is just part of the extensive 100 series range. Other suspension and seat combinations are available to suit larger vehicles
