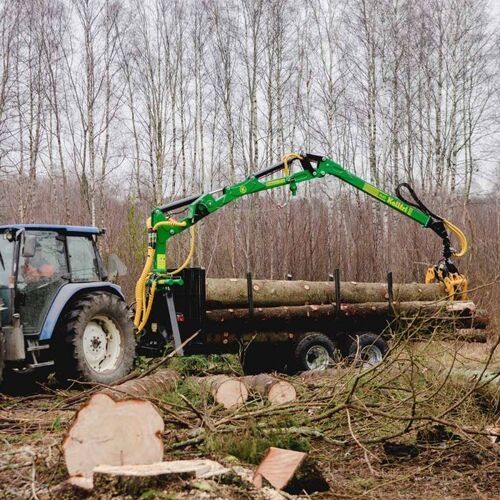

Loader wagon 21-SV90/GL63

2-axleforestry9 tons

Robust timber trailer with wide tyres for optimum manoeuvrability • Ground clearance 52 cm • Wheel 400/60-15.5 • Crane reach 6.3 m • Lifting capacity at 6.3 m: 300 kg • Fully rotating rotator and articulated steering are standard • Gripping area 0.21 m² Kellfri's forestry trailer and crane is a powerfully dimensioned rig with optimum manoeuvrability and maximum range of movement. Created by our designers to be efficient in the forest without compromising on safety. The safety headboard is more than sufficiently sized to protect the operator. All hydraulics and hoses are built in and guarded to minimise the risk of external damage. Plenty of free space below the trailer to allow it to easily pass over any obstacles and a terrain-friendly bogie. The trailer has a low centre of gravity and hydraulic stabilisers for stable loading, unloading and operation. Articulated steering with one cylinder. The crane is equipped with a bent lifting arm providing maximum lifting capacity in flat ground positions. Top-mounted lift cylinders in protected position. The interior hoses in the lifting arm and articulated boom are protected from external damage during operation. 4 slewing cylinders. Equipped as standard with winch, articulated tow bar, parking jack, 2-lever valve block, hydraulic stabilisers, fully rotating rotator, rotator link with brake. When you buy a Kellfri timber trailer, it will be supplied with oil in the system, fully assembled, test driven and ready for use. The forestry trailer requires one return and one double-acting hydraulic outlet on the tractor.
