Round baler Haylage

squarefixed chamberlarge

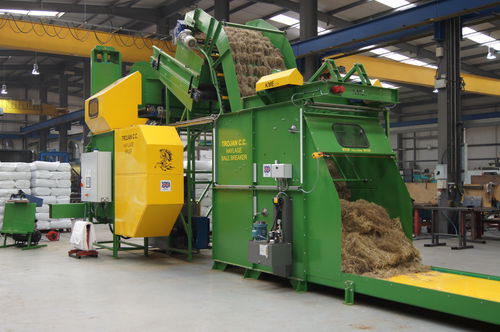

Haylage Baler / Packing System KME Ltds industry leading machinery for rebaling large round or square bales of haylage. This system can be used for rebaling and packing hay and straw but doesnt come with dust extraction as standard. Process Description Haylage / Baleage Baler :- The large square / round bale haylage would be initially placed onto the walking floor and the wrapping and ties removed from the bales. The walking floor is capable of holding up to 4 off large bales. (this may vary depending on the size of bales used) The material would then feed into the bale breaking system where a spiked conveyor and a special ‘Doffing’ system would thin the material out suitable for weighing. The material feeds onto the weigh conveyor where the system automatically weighs out approx. 20 kg of the loose material. Once the weight is achieved the weigh conveyor automatically feeds the weighed material direct into the packing unit. The packing unit compresses the material down into the finished sizes pack direct into a plastic bag with nominal measurements of 600 x 400 x 220mm. The bag is then manually sealed using a special twin seal heat sealing unit The system is capable of being operated by one person @ a rate of approx. 80 packs per hour, With two operators the capacity of the system is up to approx. 100 x 20 kg packs per hour.
