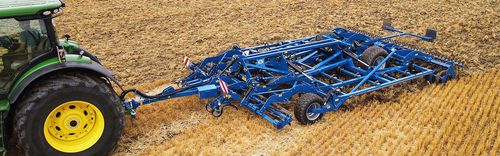

Towed field cultivator Allrounder -flatline-

foldingwith hydraulic adjustmentwith harrow

The Allrounder -flatline- is designed for extremely precise soil cultivation and the incorporation of difficult organic material, while at the same time offering excellent contour adaptation to the area to be worked. To ensure unconditional compliance with the set working depth, especially in very shallow working depths, the Allrounder -flatline- is equipped with four solid front support wheels and a double STS roller. The working depth can be adjusted hydraulically from the tractor seat. This means that the depth can also be adjusted while you are working. An easily visible scale shows you in which working position the machine is currently working. In order to guarantee the same working depth across the entire working width of the machine, the Allrounder -flatline- is equipped with excellent contour adjustment. The side parts of the Allrounder -flatline- can extend over and under, so the machine can maintain a uniform working depth even in undulating terrain. The four widely spaced front support wheels scan the surface relief and the Allrounder -flatline- works reliably at the set working depth. To ensure that even large amounts of organic resedues can be incorporated optimally, the tines are mounted over a total of six bars. Despite a narrow tine spacing of 130 mm, the Allrounder -flatline- has enough space to process even higher crop residues. Here, the large length of the Allrounder -flatline- proves to be a guarantee for trouble-free work, even under difficult conditions. Another special feature is the excellent leveling of the worked area, as the soil remains in the machine for a long time, mixes well with organic material and is then optimally distributed.
