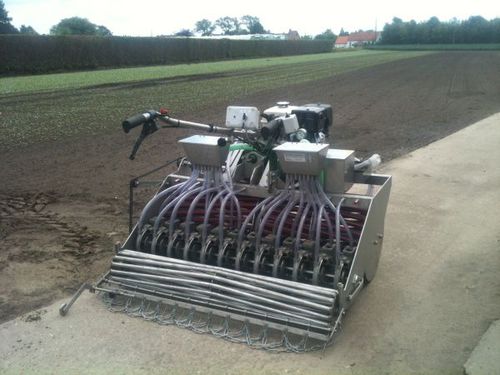

Pneumatic seed drill

walk-behindself-propelled

This machine made of stainless steel is a successor of “Dombo”, the Profi is a trimmed down version without electric components, and thus entirely mechanical. It is a self-propelled machine, started electrically with 3 gears forward and 3 backward. The machine is driven by means of a 9 or 11 HP petrol engine, which ensures a drive to the sowing part via a gearbox. The sowing part can be connected by the electrical sowing connection separately from the drive part. The machine has continuous cage-wheels which are provided by a rubber profile for anti-slip. Exhaust system for remaining seeds. Mechanical connection to be operated from the control and neutral connection. While sowing, the machine draws a “groove” in the soil in which the seeds fall. They are then covered up again by the rear roller. The seed distance, row width and seed depth are entirely adjustable with this machine. The minimum row width is 5.5 cm and the seed distance can be set from 1mm to 15 cm. The machine is available in working widths of 105 to 145 cm (maximum 16 rows per pass). The machine has the capacity to sow a surface of 1000 m2 in one hour's time. SPECIFICATIONS -3 gears -Forward and backward -9 - 11 HP -Petrol engine -min. row width 5.5cm -Seed distance 1 mm through 15cm -Working width: 105 through 145 cm -1000M2 per hour
