Individual bale wrapper RW 1110 series

roundautomaticmanual

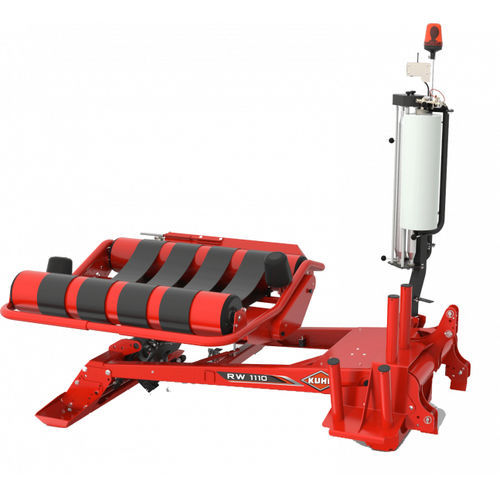

The KUHN RW 1110 is a 3-point linkage mounted, quick-hitch compatible model ideal for 'wrap and stack' operations in the field or in the yard. Wrapping at the storage site means less risk of film damage. A well-suited combination for a one-man wrapping operation. The KUHN RW 1110 is capable of wrapping heavy bales of up to 1200 kg due to its strong large main frame, as standard on all KUHN all static wrappers. The low mounted 4 belt turntable ensures gentle bale ejection so there is no need for an active fall dampener. The low mounting height also allows easy replacement of the film rolls. For a firm cut and hold of the film, even in wet conditions, the wrapper is provided with a spring-loaded high grip film cutter. The RW 1110 can be equipped with the innovative, unique e-TWIN pre-stretcher. With e-TWIN technology, the wrapping time is reduced by 50% when compared to a single pre-stretch wrapper - saving time. Choose from the manual controlled version (M) or computer-controlled version with the RF remote control (C) as standard. Fast and reliable wrapping Round turntable The KUHN round bale turntable wrappers are equipped with two rollers and four wide, spaced belts. This design provides a deep and stable cradle for the bale on the wrapping turntable. The two large bale support rollers provide more stability and guidance. The four belts provide maximum traction and even rotation for the bale. Even bale rotation is vital to ensure the optimal film overlap for conservation and crop quality during storage.
