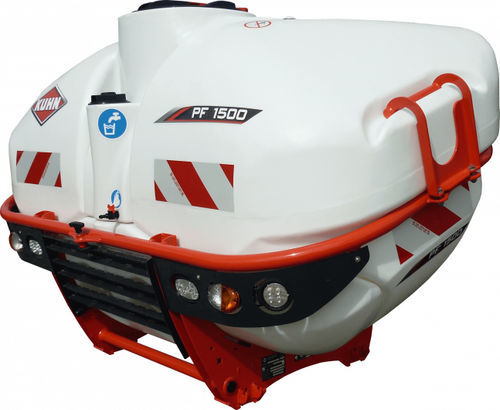

Mounted sprayer - PF - KUHN S.A. - hydraulic / autonomous / with diaphragm pump
Mounted sprayer - PF - KUHN S.A. - hydraulic / autonomous / with diaphragm pump
Mounted sprayer - PF - KUHN S.A. - hydraulic / autonomous / with diaphragm pump - image - 2
Mounted sprayer - PF - KUHN S.A. - hydraulic / autonomous / with diaphragm pump - image - 3
Mounted sprayer - PF - KUHN S.A. - hydraulic / autonomous / with diaphragm pump - image - 4
Mounted sprayer - PF - KUHN S.A. - hydraulic / autonomous / with diaphragm pump - image - 5
Mounted sprayer - PF - KUHN S.A. - hydraulic / autonomous / with diaphragm pump - image - 6
Mounted sprayer - PF - KUHN S.A. - hydraulic / autonomous / with diaphragm pump - image - 7
Mounted sprayer - PF - KUHN S.A. - hydraulic / autonomous / with diaphragm pump - image - 8
Mounted sprayer - PF - KUHN S.A. - hydraulic / autonomous / with diaphragm pump - image - 9
Mounted sprayer - PF - KUHN S.A. - hydraulic / autonomous / with diaphragm pump - image - 10
Mounted sprayer - PF - KUHN S.A. - hydraulic / autonomous / with diaphragm pump - image - 11
Mounted sprayer - PF - KUHN S.A. - hydraulic / autonomous / with diaphragm pump - image - 12
Mounted sprayer - PF - KUHN S.A. - hydraulic / autonomous / with diaphragm pump - image - 13
Mounted sprayer - PF - KUHN S.A. - hydraulic / autonomous / with diaphragm pump - image - 14
Mounted sprayer - PF - KUHN S.A. - hydraulic / autonomous / with diaphragm pump - image - 15
Mounted sprayer - PF - KUHN S.A. - hydraulic / autonomous / with diaphragm pump - image - 16
Mounted sprayer - PF - KUHN S.A. - hydraulic / autonomous / with diaphragm pump - image - 17
Mounted sprayer - PF - KUHN S.A. - hydraulic / autonomous / with diaphragm pump - image - 18
Mounted sprayer - PF - KUHN S.A. - hydraulic / autonomous / with diaphragm pump - image - 19
Mounted sprayer - PF - KUHN S.A. - hydraulic / autonomous / with diaphragm pump - image - 20
Add to favorites
Compare this product


Characteristics

Mobility
mounted
Technology
hydraulic
Control regulator
autonomous
Other characteristics
with diaphragm pump, electric, for sloped terrain, front-mount
Capacity

1,000 l, 1,160 l, 1,500 l, 1,660 l
(264.2 gal, 306.4 gal, 396.3 gal, 438.5 gal)

Rinse tank capacity

190 l
(50.2 gal)

Pump capacity

Max.: 125 l/min
(33 us gal/min)

Min.: 22 l/min
(5.8 us gal/min)

Pump pressure

2.5 bar, 7 bar
(36.3 psi, 101.5 psi)

Description

The PF front-end sprayer is not just a simple front-mounted tank; it is a complete and independent sprayer. The combination of the PF and rear DELTIS 2 or ALTIS 2 sprayer can increase your autonomy by up to 100%. The combination of the rear sprayer + PF front-mounted sprayer offers capacities from 2,300 to 3,500 litres, with the performance of today's tractors. This assembly represents an economical solution compared to a self-propelled sprayer with the same capacity. The 1,000 or 1,500-litre PF front-mounted sprayer offers optimum distribution of weight on the tractor to maintain excellent stability, even on sloping terrain. Designed as a true sprayer Functional finish The PF front-mounted sprayer is not just a simple front-mounted tank. Its design, based on a boom sprayer, ensures it is autonomous and independent. The circuit on this sprayer includes product incorporation, mixing and rinsing functionalities. The sprayer's sophisticated design offers the user excellent visibility at the tractor front. An easily visible, side-mounted needle gauge indicates the volume remaining in the tank. Tanks with centralised filling The clever assembly of the three PF tanks not only provides a compact outline but also centralises the filling of the tanks and makes it accessible from the front of the sprayer. When using the PF Select (base tank unit), the main tank and the rinsing tank can be added to reach a volume of 1,350 litres or 1,850 litres. The sprayer also features two storage compartments at the front. Hand-wash tank capacity: 16 litres
