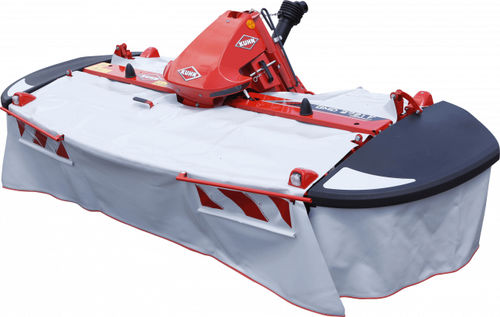

Front mower GMD 1021 F COMPACT
disc7 discs6 discs

Front mower - GMD 1021 F COMPACT - KUHN S.A. - disc / 7 discs / 6 discs
Front mower - GMD 1021 F COMPACT - KUHN S.A. - disc / 7 discs / 6 discs
Front mower - GMD 1021 F COMPACT - KUHN S.A. - disc / 7 discs / 6 discs - image - 2
Front mower - GMD 1021 F COMPACT - KUHN S.A. - disc / 7 discs / 6 discs - image - 3
Front mower - GMD 1021 F COMPACT - KUHN S.A. - disc / 7 discs / 6 discs - image - 4
Front mower - GMD 1021 F COMPACT - KUHN S.A. - disc / 7 discs / 6 discs - image - 5
Front mower - GMD 1021 F COMPACT - KUHN S.A. - disc / 7 discs / 6 discs - image - 6
Front mower - GMD 1021 F COMPACT - KUHN S.A. - disc / 7 discs / 6 discs - image - 7
Front mower - GMD 1021 F COMPACT - KUHN S.A. - disc / 7 discs / 6 discs - image - 8
Front mower - GMD 1021 F COMPACT - KUHN S.A. - disc / 7 discs / 6 discs - image - 9
Front mower - GMD 1021 F COMPACT - KUHN S.A. - disc / 7 discs / 6 discs - image - 10
Front mower - GMD 1021 F COMPACT - KUHN S.A. - disc / 7 discs / 6 discs - image - 11
Front mower - GMD 1021 F COMPACT - KUHN S.A. - disc / 7 discs / 6 discs - image - 12
Front mower - GMD 1021 F COMPACT - KUHN S.A. - disc / 7 discs / 6 discs - image - 13
Front mower - GMD 1021 F COMPACT - KUHN S.A. - disc / 7 discs / 6 discs - image - 14
Front mower - GMD 1021 F COMPACT - KUHN S.A. - disc / 7 discs / 6 discs - image - 15
Front mower - GMD 1021 F COMPACT - KUHN S.A. - disc / 7 discs / 6 discs - image - 16
Front mower - GMD 1021 F COMPACT - KUHN S.A. - disc / 7 discs / 6 discs - image - 17
Add to favorites
Compare this product


Characteristics

Mounting
front
Technology
disc
Number of discs
7 discs, 6 discs
Other characteristic
PTO-driven, for tractors, folding
Working width

2.7 m, 3.14 m
(8'10" , 10'03" )

Power required

32 ch, 43 ch
(32 hp, 43 hp)

Swath width

1.3 m, 1.5 m
(4'03" , 4'11" )

PTO speed

540 rpm, 1,000 rpm
(3,392.9 rad.min-1, 6,283.2 rad.min-1)

Weight

575 kg, 635 kg
(1,267.7 lb, 1,399.9 lb)

Slope accessibility

30 %

Description

Their compactness and light weight design makes them perfectly suited to working on steep sloping terrian. Compact front mowers are moving upmarket with the GMD 1021 F range. KUHN offer two working widths with the GMD 2721 F (2.7m) and the GMD 3121 F (3.14m). Their compactness and light weight design make them perfectly suited to working on steep sloping terrian. Control on land with slopes exceeding 30% A design which makes the difference The compact design of the GMD 1021 F range is ideally adapted to smaller sized tractors or alpine tractors. These machines can be coupled to standard tractors as well as specialist tractors for sloping terrain ie. AEBI or REFORM as their weight is limited to 575 kg and 635 kg respectivley. The machine's floatation is ensured by 2 springs or the suspension integrated into the tractor linkage. The pendulum-type articulation reaches a travel range of +/- 8° for adequate ground following. OPTIDISC ELITE: the optimum cut Quality of cut: impeccable The new OPTIDISC ELITE cutter bar was developed with farmers. Variable spacing between the discs, large overlap zones and the reduced angle of the OPTIDISC cutter bar will provide you with the quality you need. FC 1030 TRIPLES are equipped with this cutter bar and its latest upgrades that guarantee a clean cut at all times. The OPTIDISC ELITE cutter bar includes exclusive features: .Spacing is reduced at the point where the discs diverge to increase knife overlap. This results in a clean cut, even in light or short grasses. (A)
