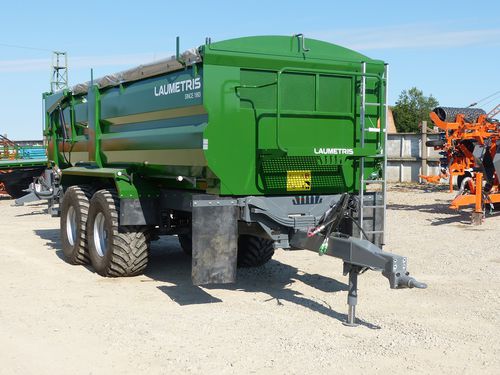

Dump trailer PTL-P series
tippingtandem axleagricultural

Dump trailer - PTL-P series - Laumetris Ltd. - tipping / tandem axle / agricultural
Dump trailer - PTL-P series - Laumetris Ltd. - tipping / tandem axle / agricultural
Dump trailer - PTL-P series - Laumetris Ltd. - tipping / tandem axle / agricultural - image - 2
Dump trailer - PTL-P series - Laumetris Ltd. - tipping / tandem axle / agricultural - image - 3
Dump trailer - PTL-P series - Laumetris Ltd. - tipping / tandem axle / agricultural - image - 4
Dump trailer - PTL-P series - Laumetris Ltd. - tipping / tandem axle / agricultural - image - 5
Dump trailer - PTL-P series - Laumetris Ltd. - tipping / tandem axle / agricultural - image - 6
Add to favorites
Compare this product


Characteristics

Construction
dump, tipping
Number of axles
tandem axle
Application
agricultural
Payload
20 ton, 15 ton, 17 ton
Brake system
with hydraulic braking, with pneumatic braking
Empty weight

5,850 kg, 6,050 kg, 6,300 kg
(12,897 lb, 13,338 lb, 13,889.1 lb)

Recommended power

125 ch, 135 ch, 155 ch
(125 hp, 135 hp, 155 hp)

Load volume

18 m³, 20 m³, 24.5 m³
(635.664 ft³, 706.293 ft³, 865.209 ft³)

Loading case lenght

6,000 mm, 7,000 mm, 8,000 mm
(236.2 in, 275.6 in, 315 in)

Loading case width

2,060 mm
(81.1 in)

Loading case hight

1,470 mm
(57.9 in)

Description

With over 18 years of manufacturing tractor drawn semi-trailer, Laumetris Ltd. has accumulated a lot of experience in this field and has achieved a very well-known brand of high quality semi-trailers producer in Baltic States. Universal back tipping semi-trailers are the most popular. Semi-trailers are produced from 2 – 40 cubic meters capacity. It has strong frame, body, wide wheels, spring chassis and rich standard equipment. Special interpretation semi-trailers are also part of Laumetris Ltd. production. Specially designed construction semi-trailers with thicker and harder metal for transportation of construction materials, expanded volume and flotation semi-trailer for transportation of peats, sugar beets and green mass. Furthermore, company produces platform semi-trailers, which are for transportation of containers and big bags with vegetables, fertilizers; bales of straws, stubble, green mass. In addition, it is possible to order specially designed trailers with various types of body, chassis and frame for any work, meeting your high requirements. Exclusive properties of Laumetris Ltd semitrailers: Solid length and width side board without any vertical bracket; Side board has bendings which increases resistance to deformation; Rear tailboard is easy to open and close with hydro cylinders while sitting in a tractor; Semitrailers are mounted with tires which are more than 500 mm width and have less pressure to soil; Spring chassis absorbs shock from rough ground and does not transfer any vertical motions to tractor throw drawbar; Springs on the hook also reduce shock and soften load for tractor;
